Description

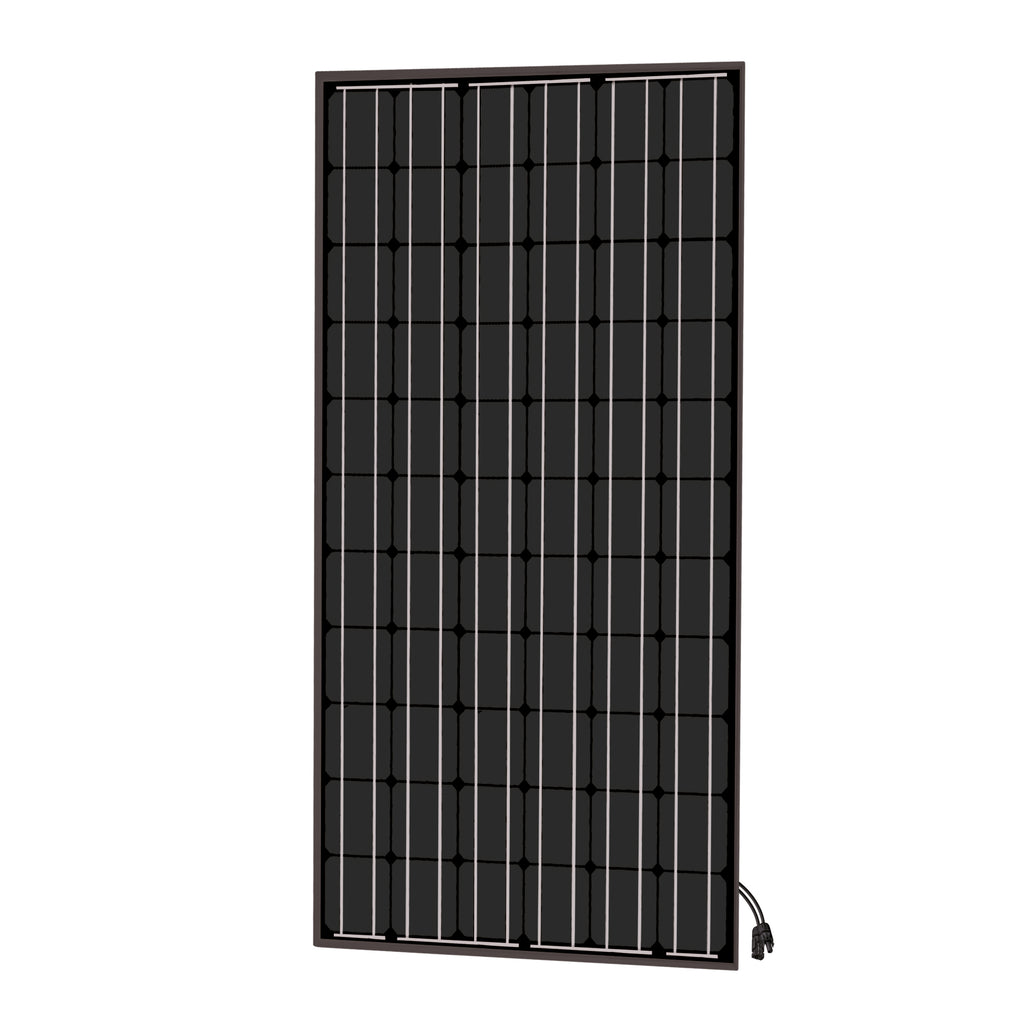

Uniteck UNISUN 200.24 M – 200 W monocrystalline solar panel for 24 V battery systems.
A high-efficiency rigid panel with black backsheet and anodised aluminium frame, designed for motorhomes, boats, cabins and off-grid installations. Can be combined in series or parallel with other UNISUN panels.
Specifications
- Maximum power (Pmax): 200 W
- Voltage at max power (Vmp): 35.6 V
- Current at max power (Imp): 5.62 A
- Open circuit voltage (Voc): 42.7 V
- Short circuit current (Isc): 6.07 A
- Cell technology: Monocrystalline, 20.6% cell efficiency
- Dimensions: 1580 × 808 × 40 mm
- Weight: 13.6 kg
- Frame: 40 mm anodised aluminium
- Junction box: TÜV certified with bypass diodes, 900 mm cables with quick-connect solar connectors
- Warranty: 5 years
Download the UNISUN technical datasheet (PDF)
Genuine Uniteck product, part number 1337 (UT1337), supplied by Euromotive Energy.
