Description

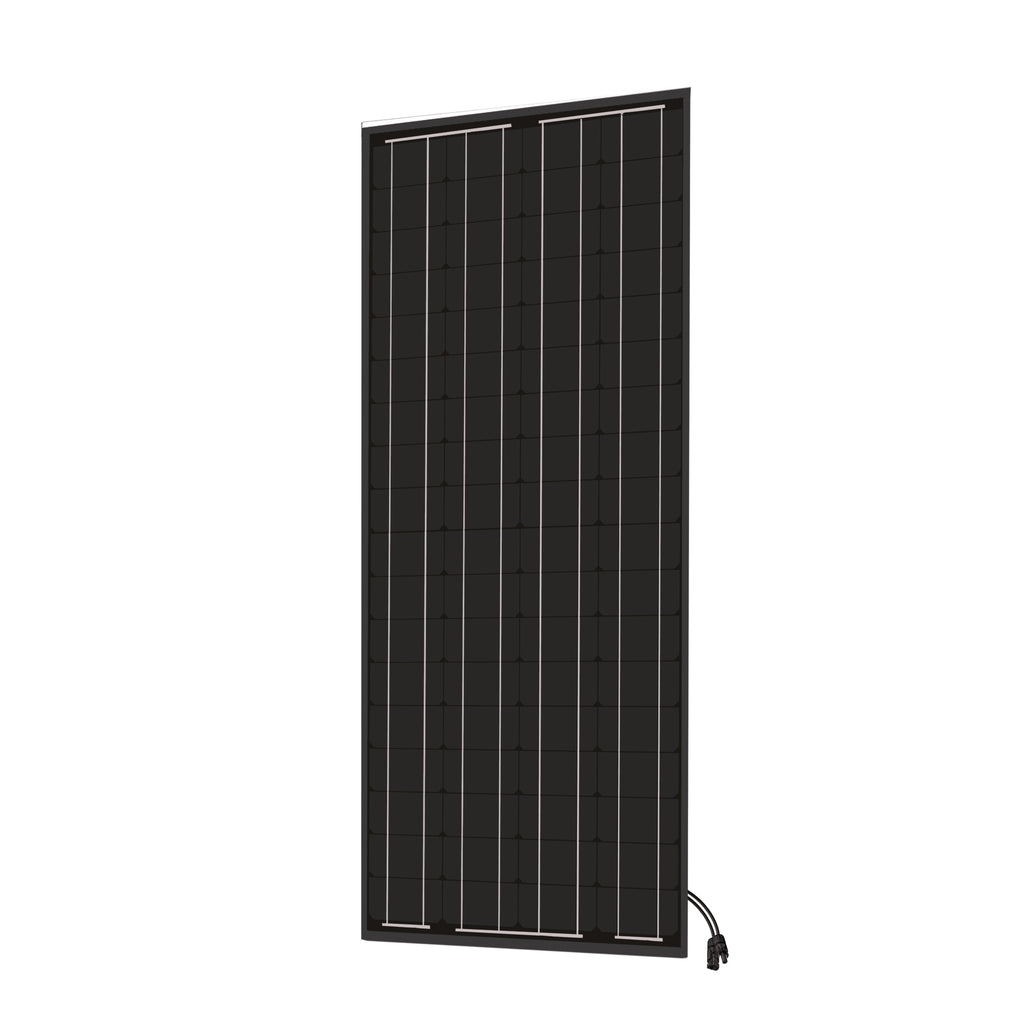

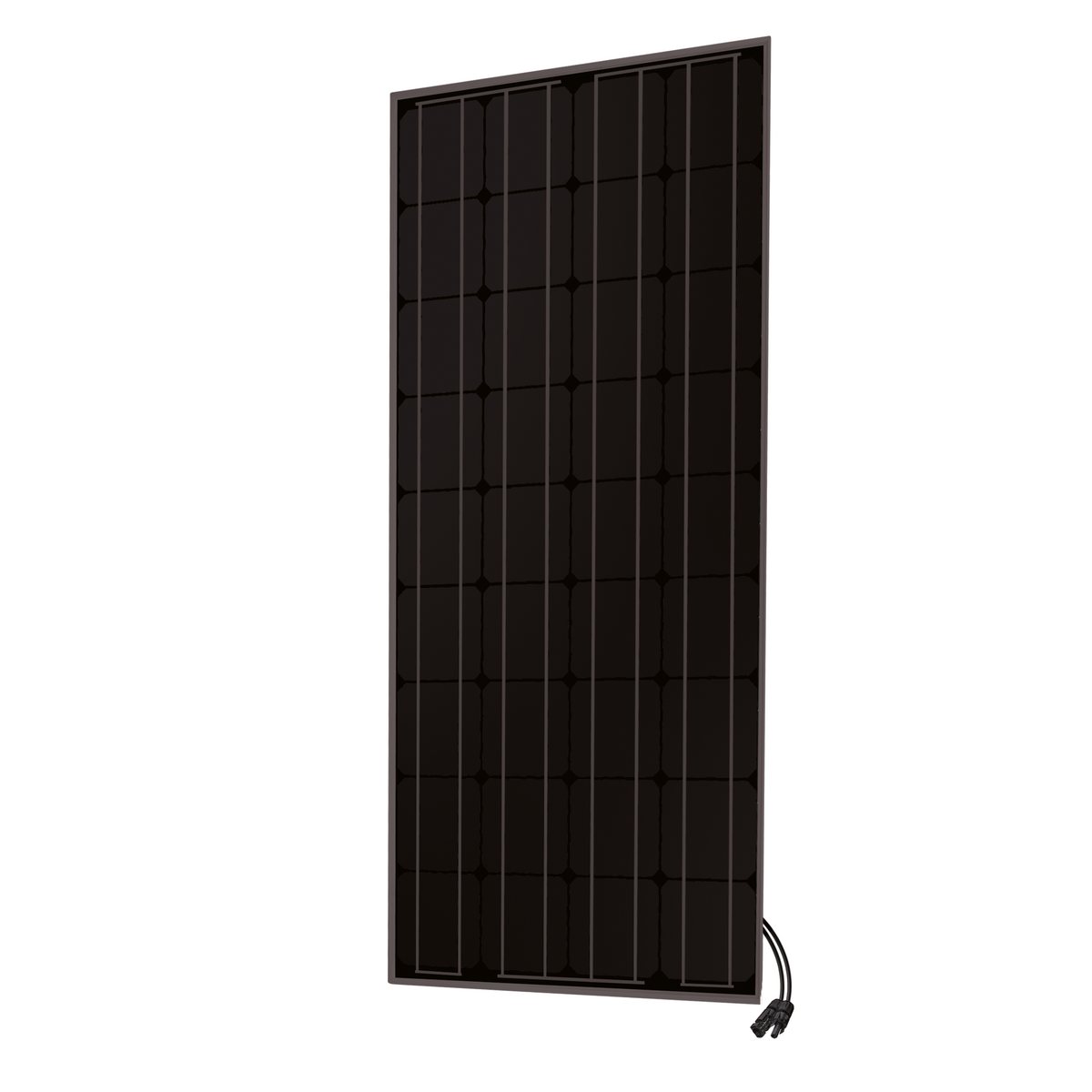

Uniteck UNISUN 150.12 M – 150 W monocrystalline solar panel for 12 V battery systems.
A high-efficiency rigid panel with black backsheet and anodised aluminium frame, designed for motorhomes, boats, cabins and off-grid installations. Can be combined in series or parallel with other UNISUN panels.
Specifications
- Maximum power (Pmax): 150 W
- Voltage at max power (Vmp): 17.8 V
- Current at max power (Imp): 8.43 A
- Open circuit voltage (Voc): 21.3 V
- Short circuit current (Isc): 9.10 A
- Cell technology: Monocrystalline, 20.6% cell efficiency
- Dimensions: 1340 × 675 × 35 mm
- Weight: 9.8 kg
- Frame: 35 mm anodised aluminium
- Junction box: TÜV certified with bypass diodes, 900 mm cables with quick-connect solar connectors
- Warranty: 5 years
Download the UNISUN technical datasheet (PDF)
Genuine Uniteck product, part number 0453 (UT0453), supplied by Euromotive Energy.
