Description

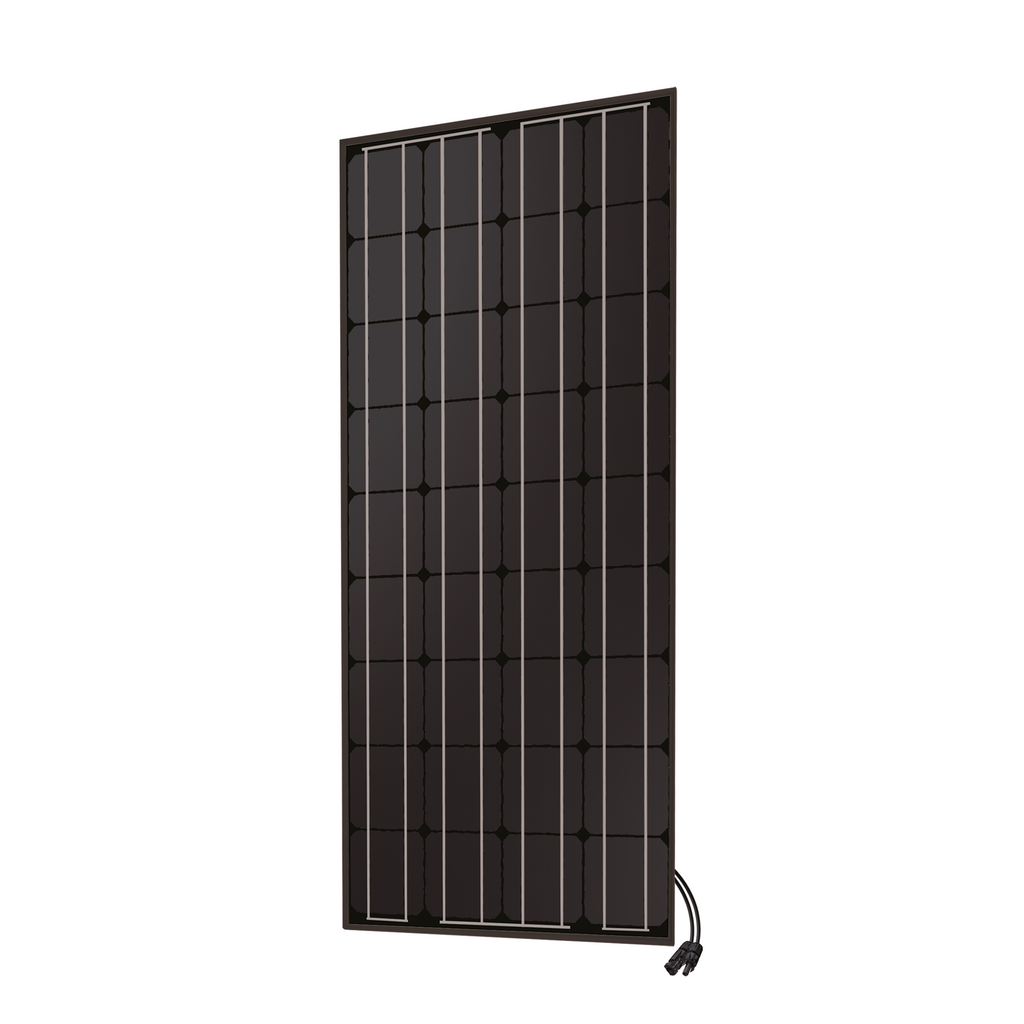

Uniteck UNISUN 80.12 M – 80 W monocrystalline solar panel for 12 V battery systems.
A high-efficiency rigid panel with black backsheet and anodised aluminium frame, designed for motorhomes, boats, cabins and off-grid installations. Can be combined in series or parallel with other UNISUN panels.
Specifications
- Maximum power (Pmax): 80 W
- Voltage at max power (Vmp): 17.8 V
- Current at max power (Imp): 4.49 A
- Open circuit voltage (Voc): 22.3 V
- Short circuit current (Isc): 4.85 A
- Cell technology: Monocrystalline, 20.6% cell efficiency
- Dimensions: 960 × 550 × 35 mm
- Weight: 6.3 kg
- Frame: 35 mm anodised aluminium
- Junction box: TÜV certified with bypass diodes, 900 mm cables with quick-connect solar connectors
- Warranty: 5 years
Download the UNISUN technical datasheet (PDF)
Genuine Uniteck product, part number 0095 (UT0095), supplied by Euromotive Energy.
