Description

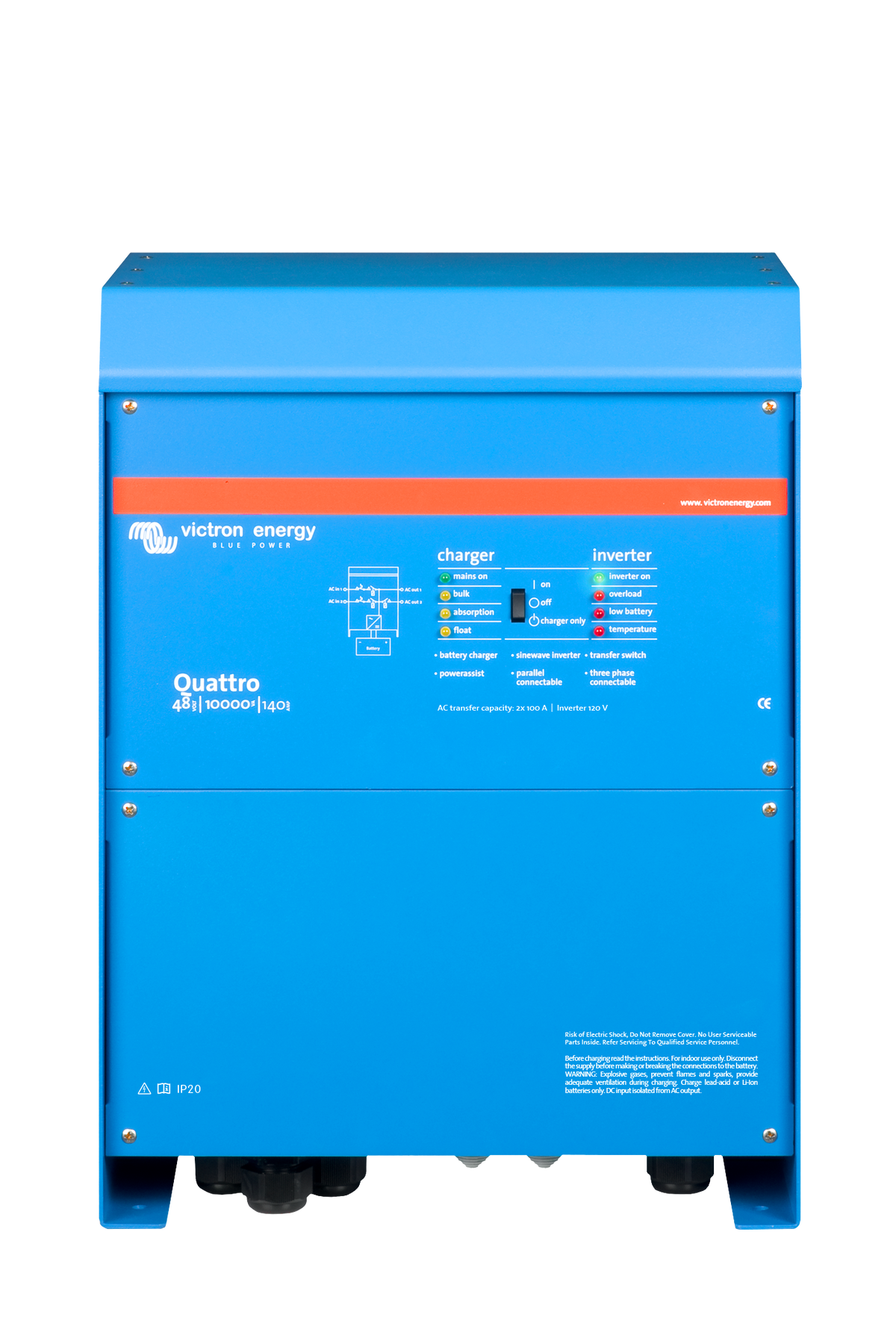

The Victron Quattro 48/10000/140-100/100 120V (UL 1741) is a 10kVA inverter/charger for 48V battery systems with 120V AC output, certified to UL 1741 for grid-interactive use in North America. Like every Quattro, it accepts two independent AC inputs – for example grid and a generator – and automatically connects to whichever is live.
Key features
- Two AC inputs (100A each): automatic switching between grid, shore power and generator.
- UL 1741 certified: for grid-tied and ESS installations where North American certification is required.
- Uninterrupted power (UPS): takes over in under 20 milliseconds if the AC supply fails.
- PowerControl and PowerAssist: limits draw on a weak supply and boosts it with battery power during peak demand.
- 140A adaptive charger: suits lithium, AGM and gel batteries.
- Scalable and connected: parallel, split-phase and three-phase capable; add a GX device for VRM remote monitoring.
Specifications
| Part number | QUA483100102 |
| Nominal battery voltage | 48V |
| AC output | 120VAC, 60Hz |
| Rated power | 10,000VA |
| Continuous output power | 8,000W at 25°C |
| Peak power | 20,000W |
| Max. battery charge current | 140A |
| AC inputs | 2 x 100A |
| Certification | UL 1741 |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts (two positive, two negative) |
| Dimensions (H x W x D) | 572 x 488 x 344 mm |
| Weight | 58 kg |
Note: this is a North American 120V model. For Irish and European 230V systems, see the Quattro 48/10000/140-100/100 230V.
