Description

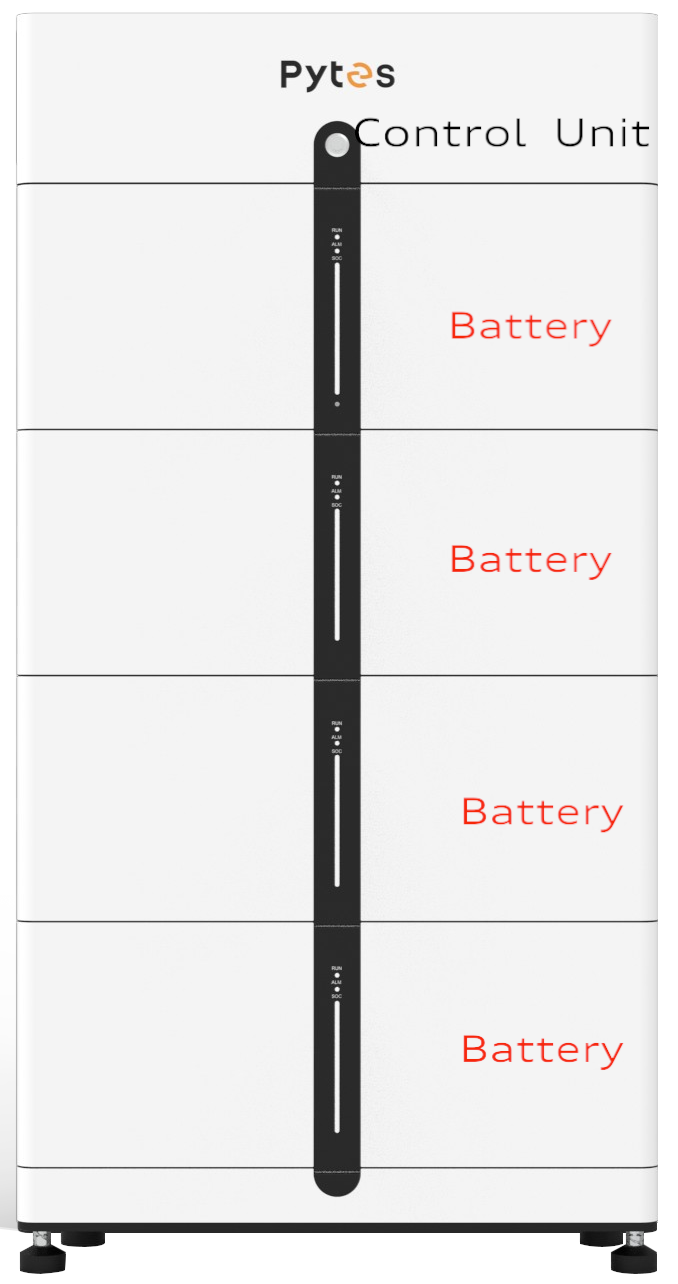

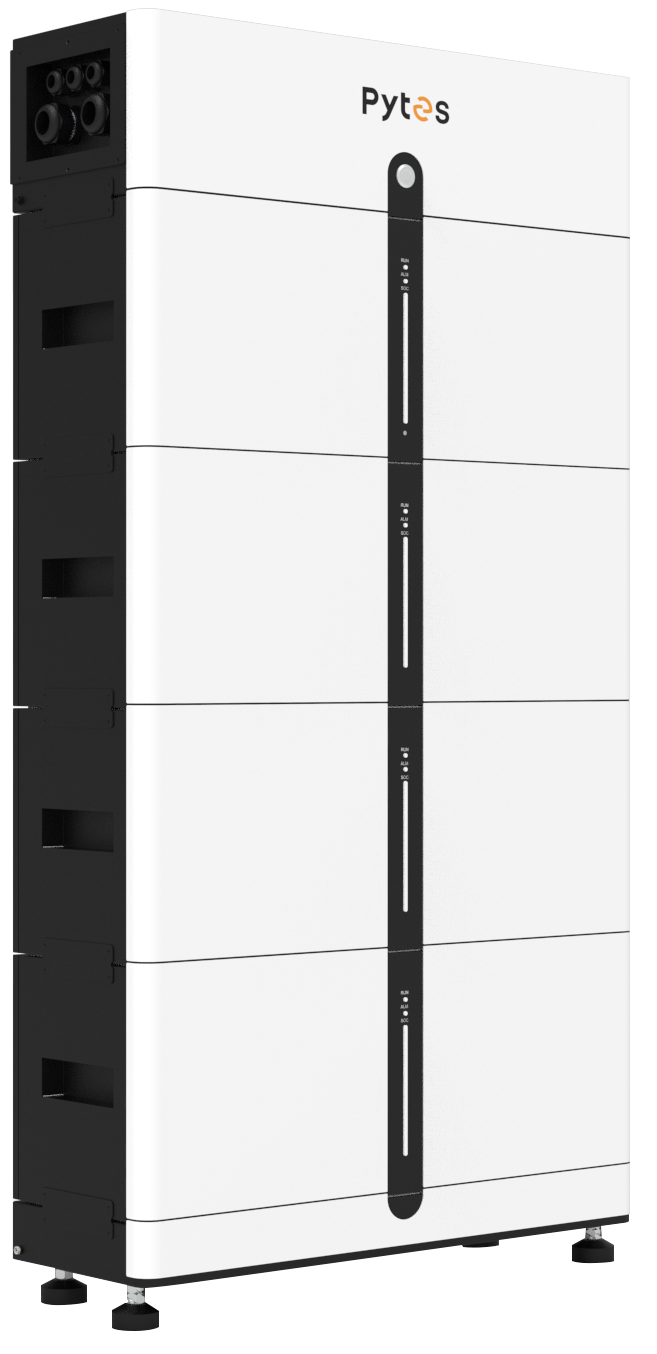

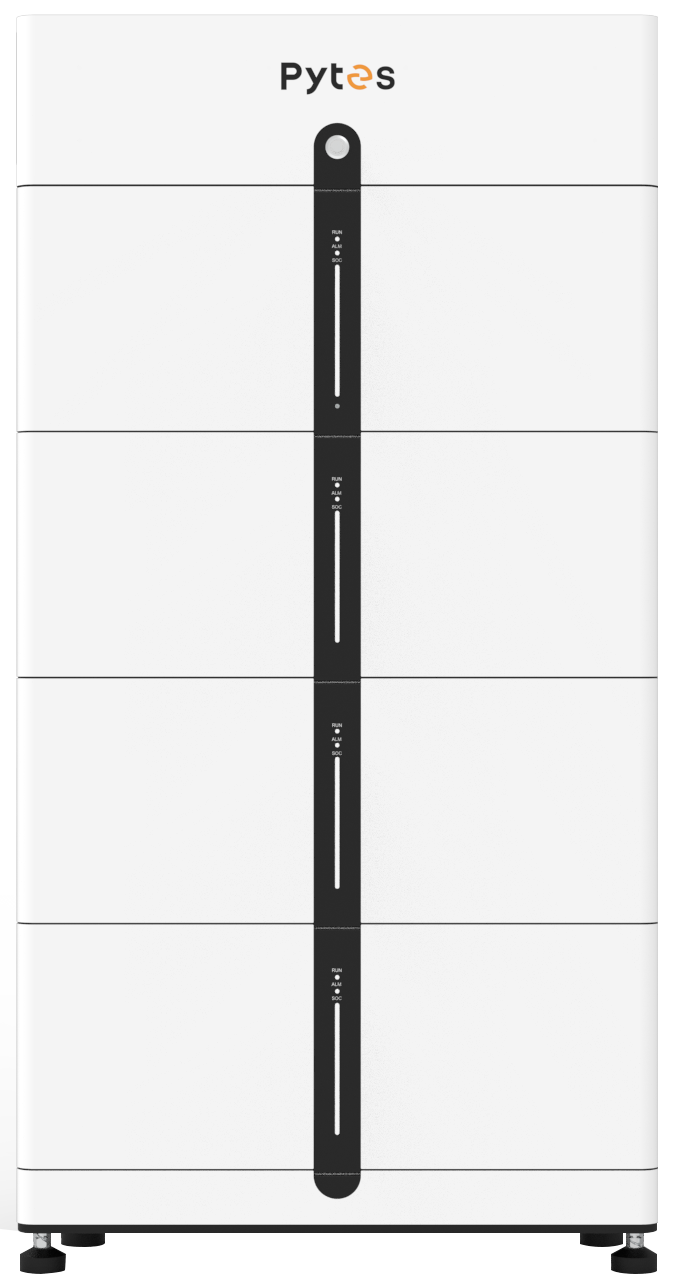

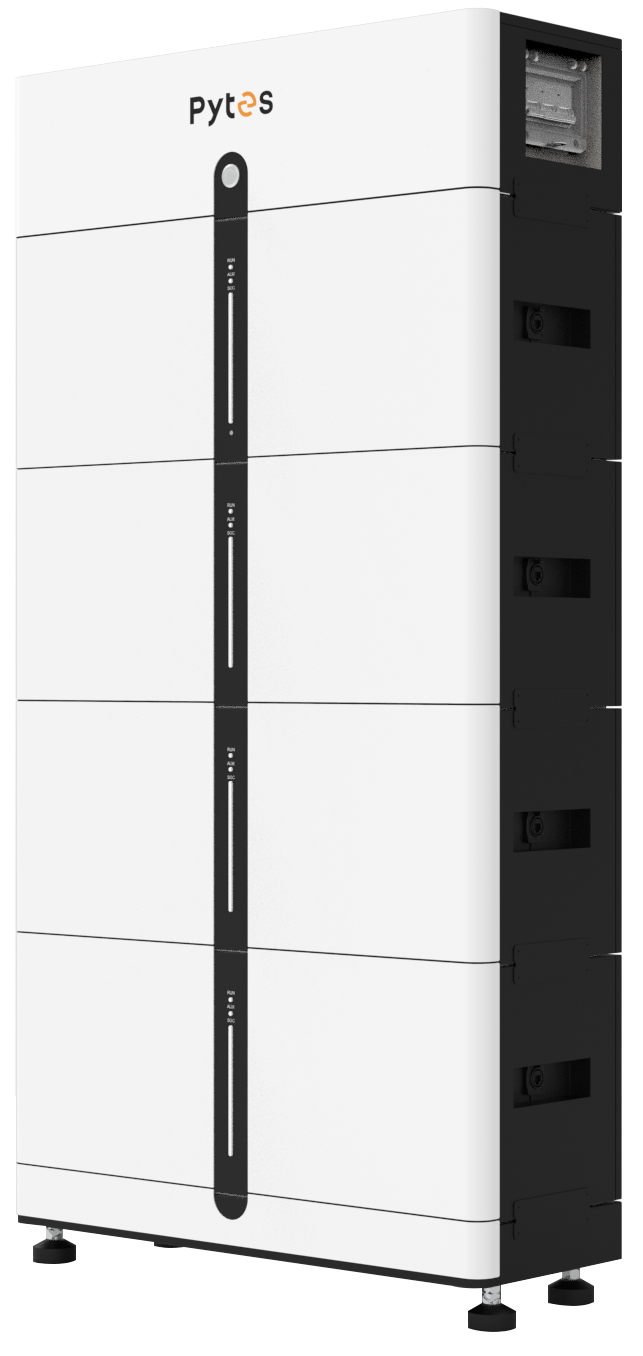

The Pytes Pi LV1 is a 5.12kWh lithium iron phosphate (LiFePO₄) battery designed for residential, commercial, and off-grid applications. With its stackable design, smart battery management system (BMS), and high energy density, this battery offers a flexible and scalable energy storage solution for solar, backup power, and hybrid systems.
Key Features:
✅ Modular & Stackable Design: Easily expandable by stacking multiple units for increased capacity.
✅ Reliable Energy Storage: 5.12kWh of usable energy with high efficiency.
✅ Long Cycle Life: 6000+ cycles at 90% Depth of Discharge (DoD) for extended durability and cost savings.
✅ Safe & Stable LiFePO₄ Chemistry: Ensures thermal stability, fire resistance, and long-term reliability.
✅ Scalability & Flexibility: Supports parallel connections for expanded storage as energy demands increase.
✅ High Power Output: Recommended charge/discharge current of 50A (2.56kW) and a maximum of 100A (5.12kW).
✅ Smart Battery Management System (BMS): Protects against overcharging, over-discharging, and temperature variations for enhanced performance and longevity.
✅ Compact & Sleek Design: Space-saving and easy to integrate into various storage setups.
✅ Remote Monitoring & Firmware Updates: Allows users to track battery performance and optimize efficiency.
Technical Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Nominal Voltage: 48V
- Nominal Capacity: 100Ah
- Voltage Range: 45V – 54V
- Max Charge/Discharge Current: 100A (5.12kW)
- Cycle Life: 6000+ cycles @ 90% DoD
- Weight: 45kg
- Dimensions: 500mm (L) x 445mm (W) x 157mm (H)
- Installation Type: Stackable / Modular
- Protection Rating: IP20 (indoor use)
The Pytes Pi LV1 is an efficient, flexible, and scalable battery solution that enables users to customize their energy storage needs with ease. Whether used for off-grid solar systems, backup power, or hybrid setups, this battery provides a cost-effective, safe, and long-lasting energy storage option.
