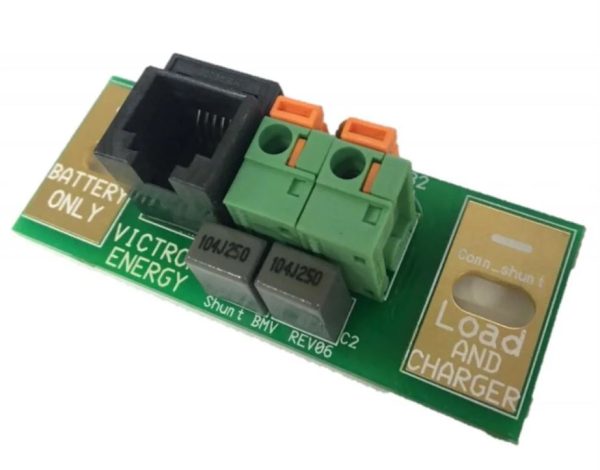

PCBA for Shunt – Victron BMV 602S / 700 / 702 / 712 Battery Monitors
This replacement PCBA (Printed Circuit Board Assembly) is designed specifically for the Victron BMV series shunts, including models BMV-602S, BMV-700, BMV-702, and BMV-712. It provides the electronic interface between the shunt and the battery monitor display, enabling precise real-time tracking of current, voltage, and state of charge.
Key Features:
-
Official Victron Replacement Part:
Genuine PCBA for restoring full functionality to your BMV series battery monitor shunt. -
Compatibility:
Fully compatible with the following Victron models:-
BMV-602S
-
BMV-700
-
BMV-702
-
BMV-712 Smart
-
-
Restores Smart Monitoring Capabilities:
Enables accurate readings of battery voltage, current flow, amp-hours consumed, time-to-go, and state of charge when used with a Victron BMV display. -
Ideal for Service & Repair:
Swap out a damaged or faulty PCBA without replacing the entire shunt block—saves cost and downtime. -
Plug-and-Play with Existing Hardware:
Reuses your existing shunt housing and display wiring for easy installation.
Technical Overview:
-
Interface: Connects directly to BMV shunt block
-
Voltage Range: 6.5 – 70V DC systems
-
Accuracy: ±0.4%
-
Output: Compatible with standard BMV communication cables (RJ12)
-
Mounting: Internal to the shunt body
Applications:
-
Battery monitoring in off-grid, marine, RV, and industrial energy systems
-
Repairs or upgrades for BMV 602S, 700, 702, or 712 Smart models
-
Restoring real-time current and SoC visibility in solar storage or backup systems
📦 Includes: 1x PCBA for BMV shunt (shunt housing and cabling sold separately)
