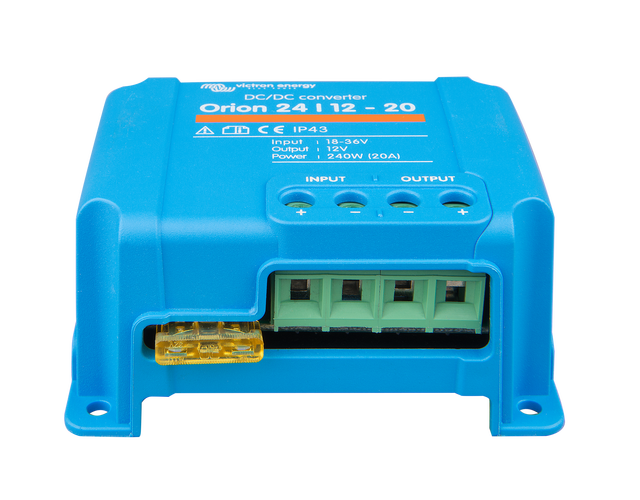

Victron Energy Orion-Tr 24/12-20 DC-DC Converter - 240W - Non-Isolated
The Victron Orion-TR voltage dropper is designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output for use on most electrical items on board boats, motorhomes and other automotive applications. The converter is protected to IP43 and is easy to install with no special tools needed. They are very efficient, running above 95% efficiency due to the use of active rectification (also known as synchronous rectification).
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation
Specifications:
| Input voltage range |
18-35V |
| Output voltage |
12.5V |
| Efficiency |
97% |
| Continuous output current |
20A |
| Max. Output current |
25A |
| Galvanic isolation |
No |
| Off load current |
< 35mA |
| Operating temperature range |
(derate 3% per °C above 40°C) -20 to +55°C |
| DC connection |
Screw terminals |
| Maximum cable cross-section |
6 mm² - AWG10 |
| Weight kg (lbs) |
0,25 (0.55) |
| Dimensions hxwxd in mm (hxwxd in inches) |
|
| Standards: |
Safety EN 60950 Emission EN 61000-6-3, EN 55014-1 Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive ECE R10-4 |
