Description

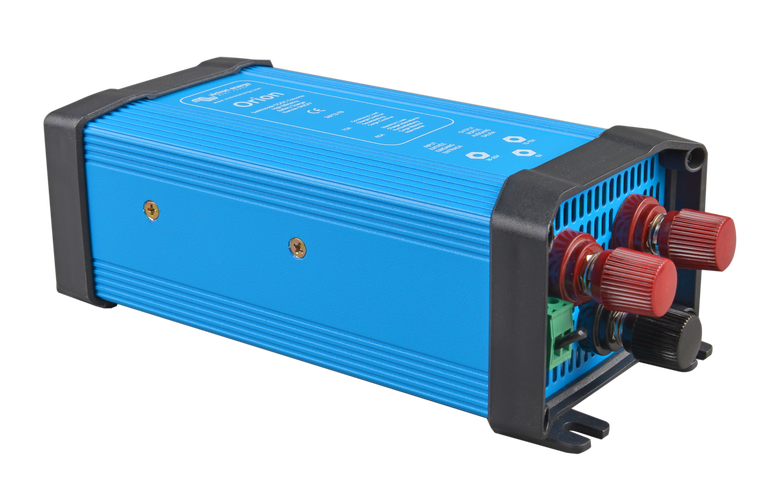

The Orion 24/12-70A Non-Isolated IP20 is a robust and reliable DC-DC converter designed for high-power applications. With an input voltage range of 18-35V, it is versatile for use in a variety of settings. The converter boasts an impressive continuous output current of 70A and a maximum output current of 85A, ensuring that it can handle demanding loads with ease. The efficiency rate of 92% makes it an energy-efficient choice for your power conversion needs. Additionally, the Orion 24/12-70A features an adjustable output voltage from 10-15V, with a factory set of 13.2V, providing flexibility for different voltage requirements.
This model is equipped with a remote on-off connector, eliminating the need for a high current switch in the input wiring. This feature can be operated with a low power switch or by the engine run/stop switch, adding convenience and safety to the operation. The Orion 24/12-70A can also function as a battery charger, suitable for charging a 12 Volt starter or accessory battery in an otherwise 24V system. Its ability to be connected in parallel with up to five units allows for an increase in output current, making it a scalable solution for growing power demands.
The unit's operating temperature range of -20 to +55°C, with a derate of 3% per °C above 40°C, ensures reliable performance in various environmental conditions. The Orion 24/12-70A's design includes M6 bolts for secure DC connections and comes with four insulated Fastons for easy installation. Weighing just 0.9 kg (2.0 lbs) and with dimensions of 65x88x195 mm (2.6x3.5x7.7 inches), it is compact and lightweight, making it easy to integrate into existing systems without requiring significant space.
Safety and compliance are paramount, and the Orion 24/12-70A meets the standards of EN 61000 for emission and immunity, as well as the automotive directive EN 60950-6 3, EN 55014 1-62, EN 61000 1, and EN 55014 2 ECE R10-4. The fan-assisted cooling is temperature controlled, ensuring that the unit operates within safe temperature limits even under heavy load conditions.
In summary, the Orion 24/12-70A Non-Isolated IP20 DC-DC converter is a high-performance, energy-efficient, and versatile solution for a wide range of power conversion applications. Its robust design, safety features, and ease of installation make it an excellent choice for professionals looking for reliable power management solutions.
