Description

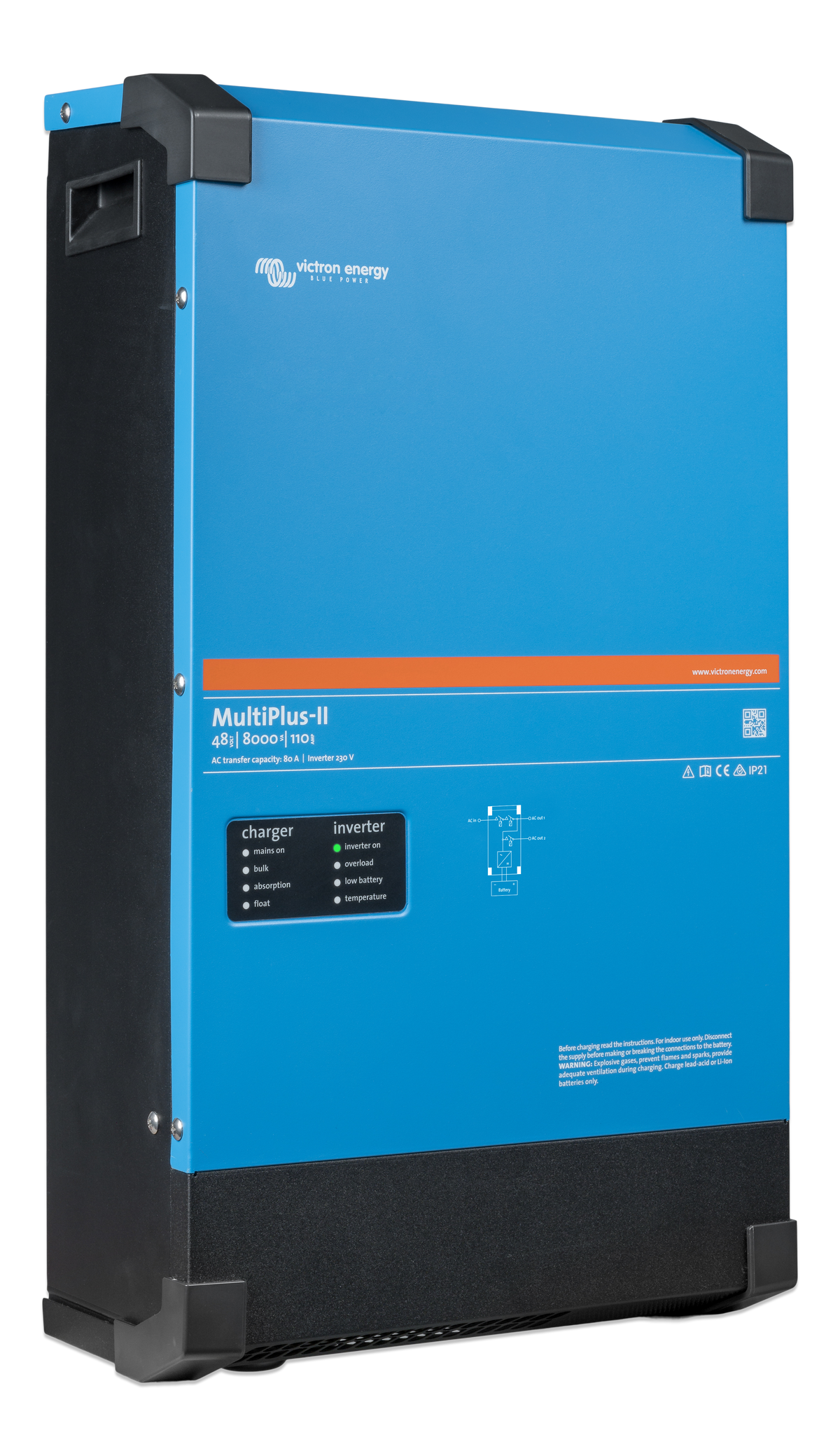

The Victron MultiPlus-II 48/8000/110-100 is an 8kVA inverter/charger for 48V battery systems, combining a pure sine wave inverter, a 110A adaptive battery charger and a 100A automatic transfer switch. It's built for larger homes, farms and commercial sites that need serious backup or off-grid capacity, and for ESS systems with bigger loads.
Key features
- Uninterrupted power (UPS): takes over in under 20 milliseconds if the grid or generator drops out.
- 100A transfer switch: passes through a full 100A supply to your loads.
- PowerControl and PowerAssist: limits draw on a weak grid or generator and boosts it with battery power during peak demand.
- ESS ready: the core of a Victron Energy Storage System, including Dynamic ESS.
- Two AC outputs: the second output only runs when AC input is present.
- Adaptive charging: suits lithium, AGM and gel batteries.
- Scalable: parallel and three-phase configurations supported.
- Monitoring: pair with a GX device such as the Cerbo GX for local and remote monitoring via VRM.
Specifications
| Part number | PMP482805000 |
| Nominal battery voltage | 48V |
| AC output | 230VAC ±2%, 50Hz |
| Rated power | 8,000VA |
| Continuous output power | 6,400W at 25°C |
| Peak power | 15,000W |
| Max. battery charge current | 110A |
| Transfer switch | 100A |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts (two positive, two negative) |
| AC connection | M6 bolts |
| Dimensions (H x W x D) | 642 x 363 x 206 mm |
| Weight | 42 kg |
