Description

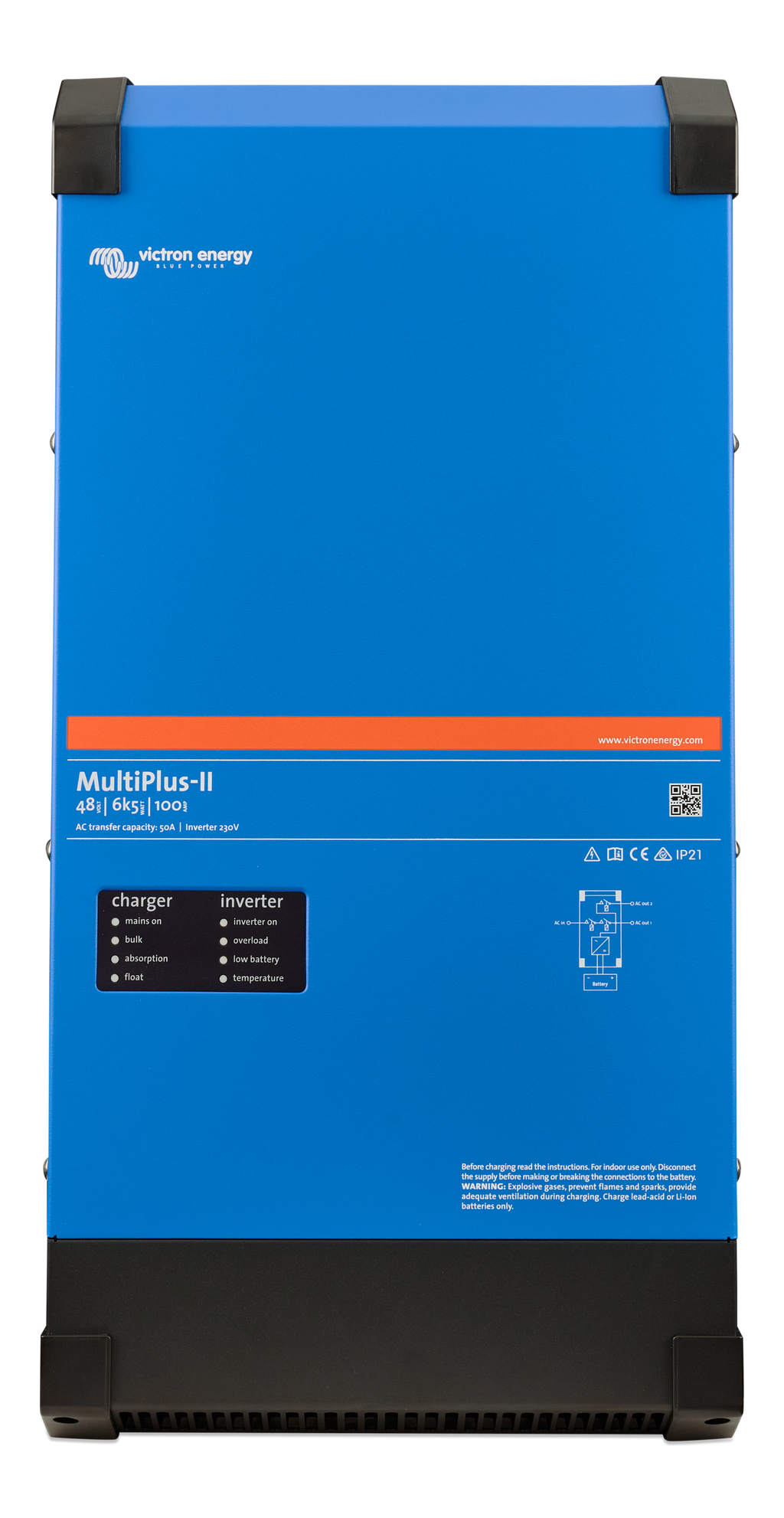

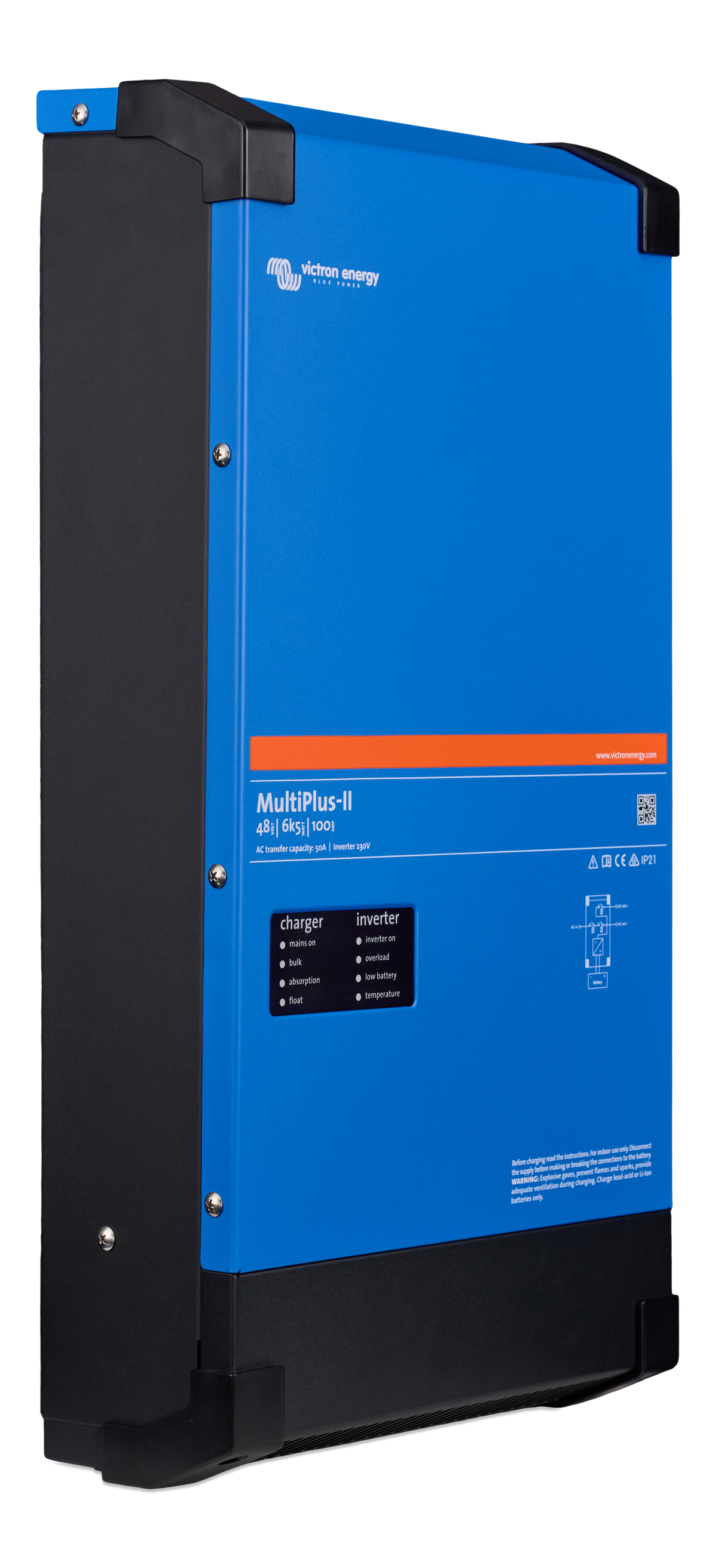

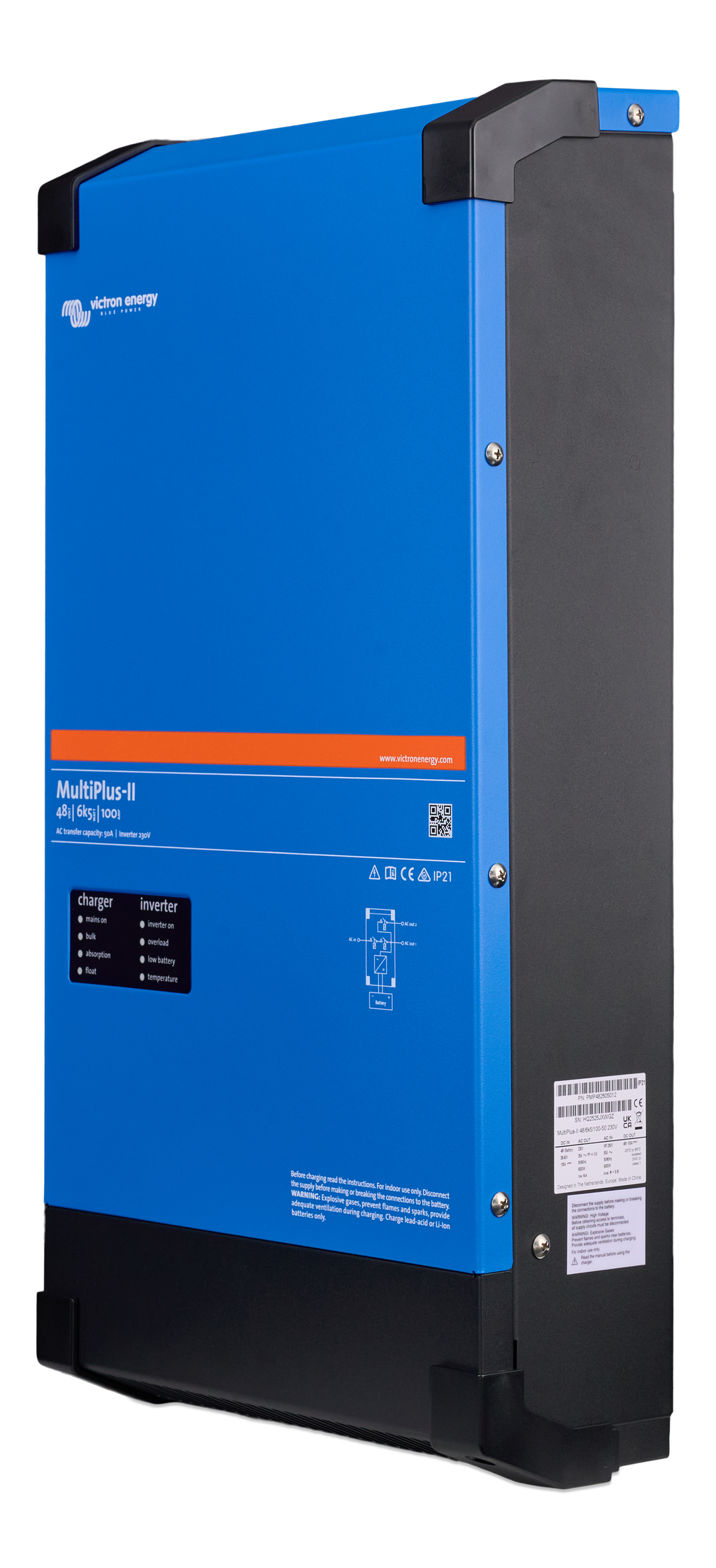

The Victron MultiPlus-II 48/6k5/100-50 is a 6.5kVA pure sine wave inverter/charger for 48V battery systems. It combines a high-output inverter, a 100A adaptive battery charger and a 50A automatic transfer switch in one unit, and is suited to off-grid homes, backup power, hybrid ESS installations and larger marine or vehicle systems.
Key features
- Uninterrupted power (UPS): if the grid or generator drops out, the inverter takes over in under 20 milliseconds, so computers and sensitive electronics keep running.
- PowerControl and PowerAssist: set a maximum grid or generator current and the MultiPlus-II reduces charging to avoid overload, then tops up the AC supply from the battery during peak demand.
- ESS ready: the core component of a Victron Energy Storage System, with external current sensing to optimise self-consumption.
- Two AC outputs: the second output is only live when AC input is present, so non-essential loads don't drain the battery.
- Adaptive charging: a smart multi-stage algorithm suitable for lithium, AGM and gel batteries.
- Scalable: parallel and three-phase operation for larger systems.
- Monitoring: pair with a GX device such as the Cerbo GX for local and remote monitoring via the free VRM portal and app.
Specifications
| Part number | PMP482605012 |
| Nominal battery voltage | 48V (DC input range 38–60V) |
| AC output | 230VAC ±2%, 50Hz |
| Continuous output power | 6,000W at 25°C / 5,700W at 40°C / 4,600W at 65°C |
| Time-limited power | 6.5kW for 4 hours / 8kW for 1 hour (cold start) |
| Peak power | 11,000W |
| Maximum efficiency | 96% |
| Max. battery charge current | 100A |
| Charge voltage | Absorption 57.6V / Float 55.2V |
| Transfer switch / max AC input | 50A |
| AC input range | 187–265VAC, 45–65Hz |
| Zero-load power | 28W (18W AES mode, 8W search mode) |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts |
| Dimensions (H x W x D) | 644 x 320 x 150 mm |
| Weight | 29 kg |
Need help designing a system? Euromotive Energy is a Victron distributor in Ireland and can advise on batteries, solar, GX monitoring and installation.
