Description

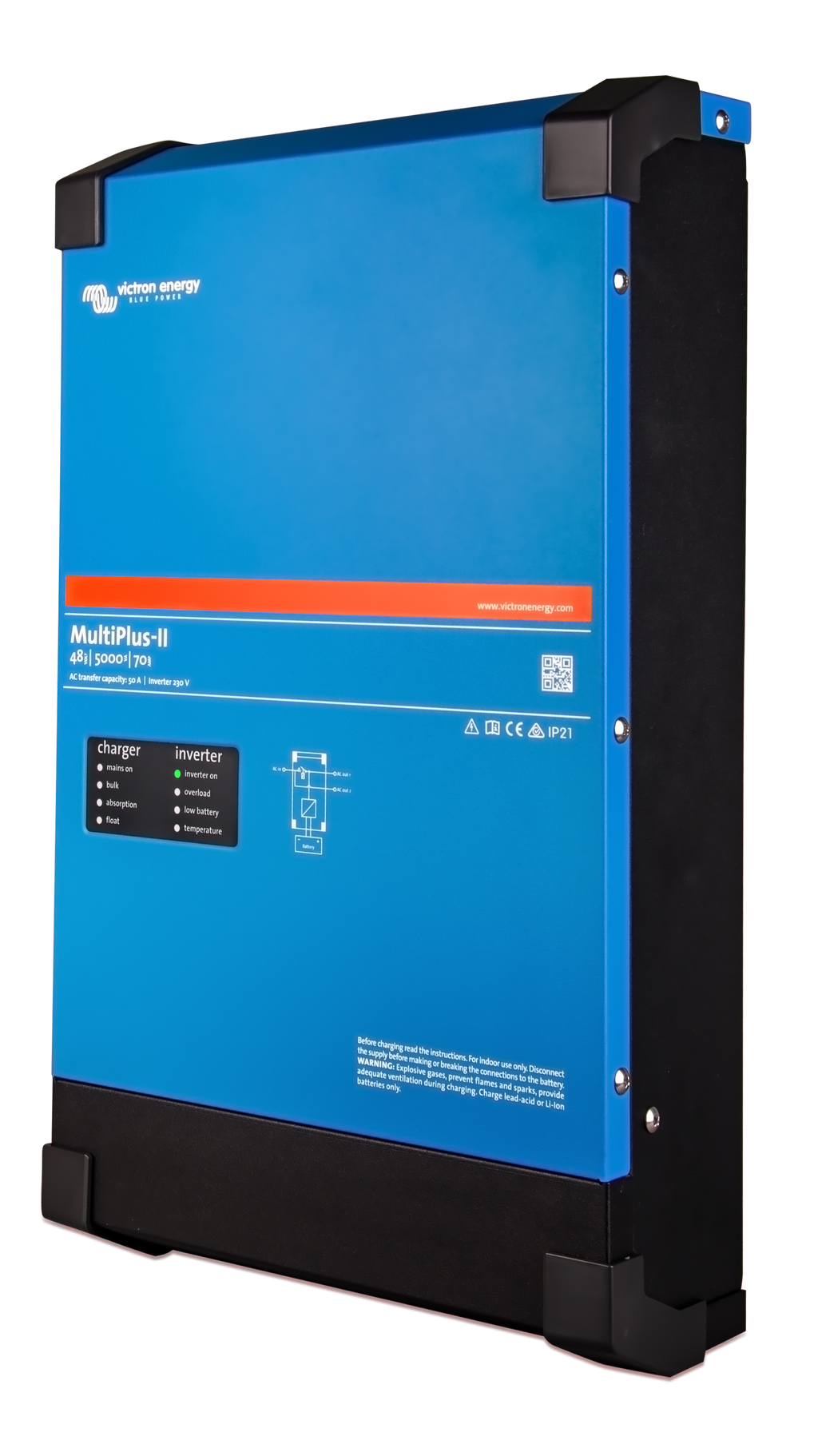

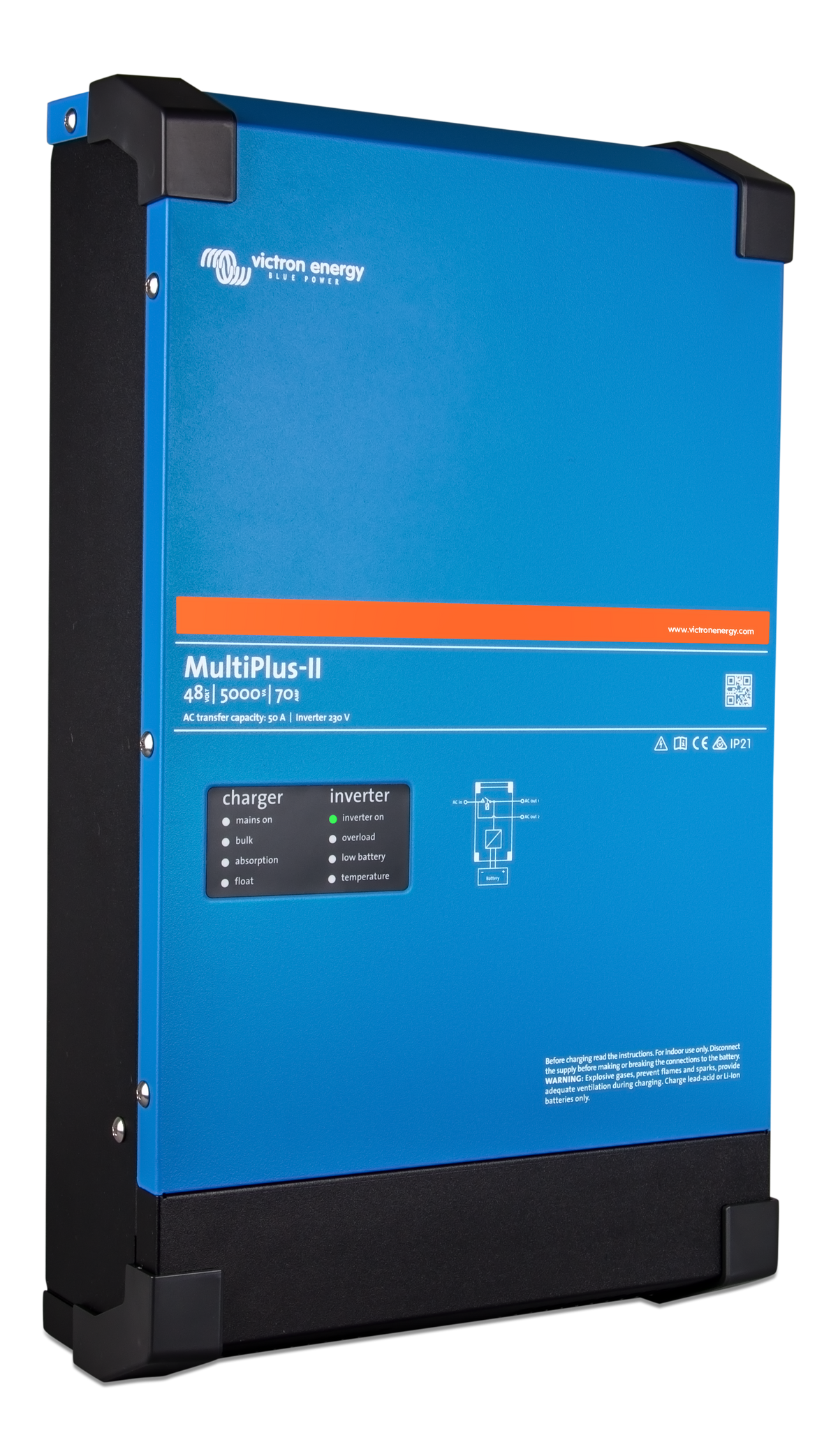

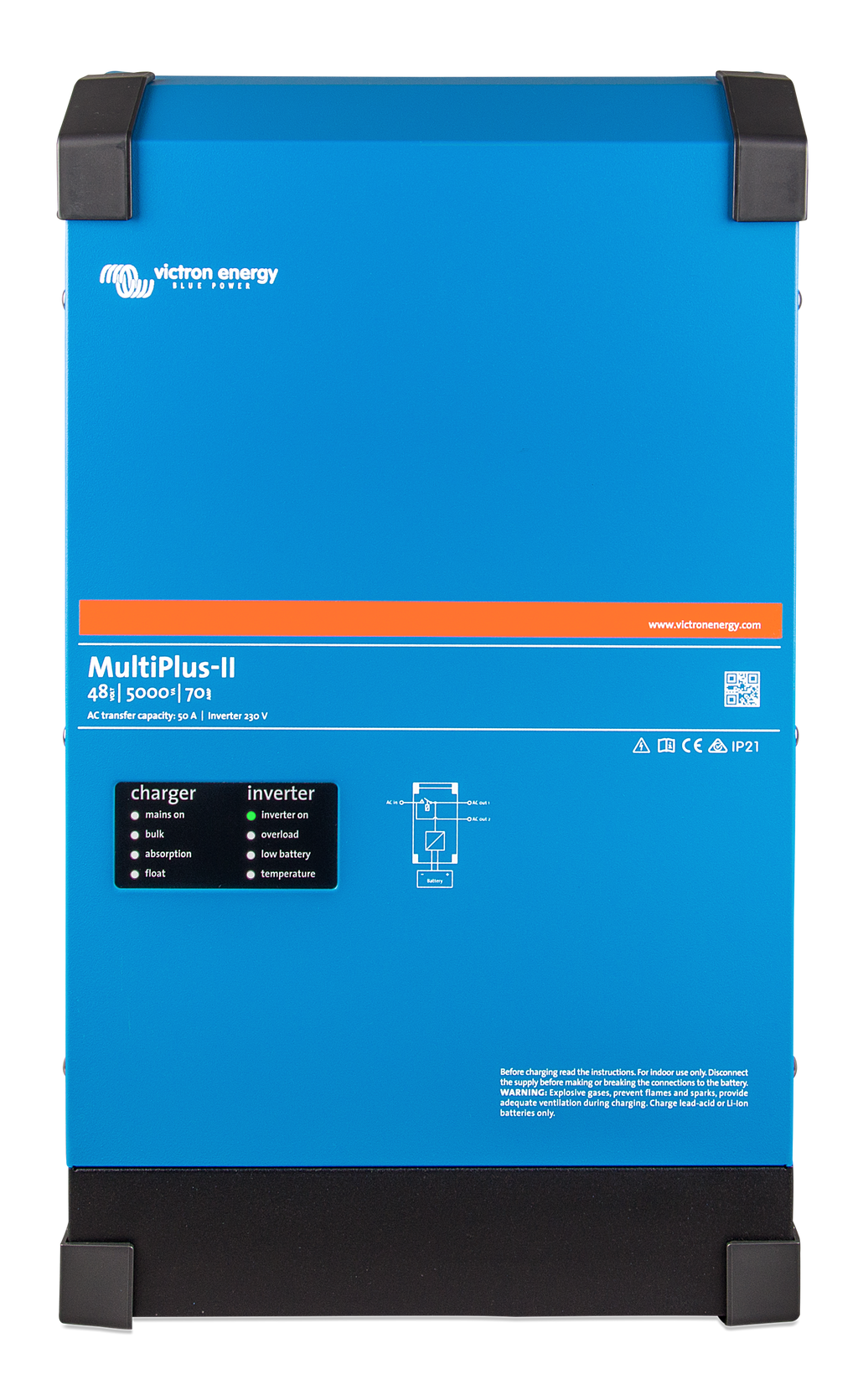

The Victron MultiPlus-II 48/5000/70-50 is the workhorse 5kVA inverter/charger for 48V battery systems: a pure sine wave inverter, a 70A adaptive battery charger and a 50A automatic transfer switch in one unit. It's the most popular choice for home backup, off-grid and ESS installations built around a 48V lithium bank.
Key features
- Uninterrupted power (UPS): takes over in under 20 milliseconds if the grid or generator drops out.
- PowerControl and PowerAssist: set your grid or generator limit and the MultiPlus-II reduces charging to avoid overload, then supplements the supply from the battery during peak demand.
- ESS ready: the core component of a Victron Energy Storage System, including Dynamic ESS, with external current sensing to optimise self-consumption.
- Two AC outputs: the second output only runs when AC input is present, keeping non-essential loads off the battery.
- Adaptive charging: suits lithium, AGM and gel batteries.
- Scalable: parallel and three-phase configurations supported.
- Monitoring: pair with a GX device such as the Cerbo GX for local and remote monitoring via the free VRM portal and app.
Specifications
| Part number | PMP482505012 |
| Nominal battery voltage | 48V |
| AC output | 230VAC ±2%, 50Hz |
| Rated power | 5,000VA |
| Continuous output power | 4,000W at 25°C |
| Peak power | 9,000W |
| Max. battery charge current | 70A |
| Transfer switch | 50A |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts |
| AC connection | Screw terminals 13mm² (6 AWG) |
| Dimensions (H x W x D) | 565 x 320 x 149 mm |
| Weight | 30 kg |
Need help designing a system? Euromotive Energy is a Victron distributor in Ireland and can advise on batteries, solar, GX monitoring and installation.
