Description

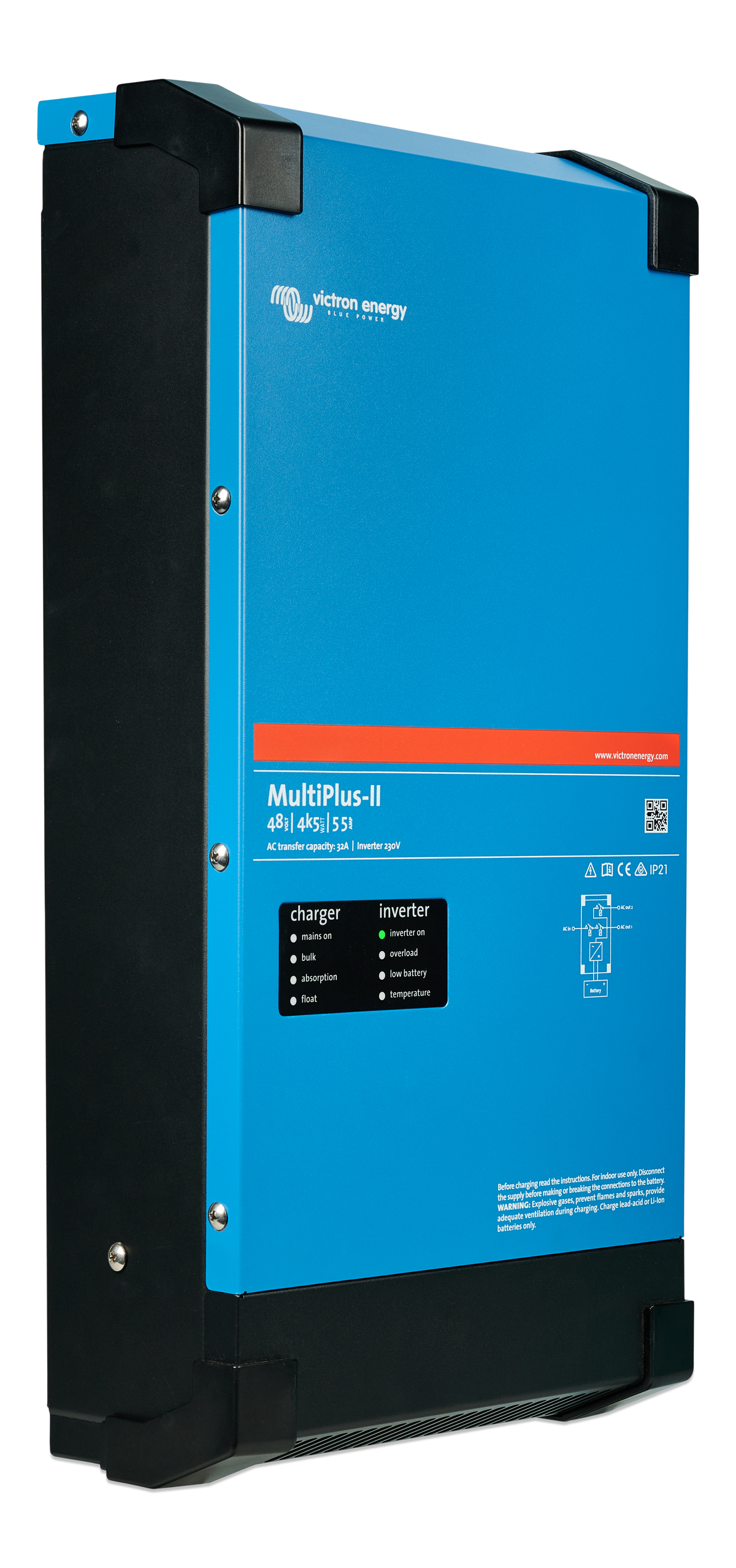

The Victron MultiPlus-II 48/4k5/55-32 is a 4.5kVA pure sine wave inverter/charger for 48V battery systems, combining an inverter, a 55A adaptive battery charger and a 32A automatic transfer switch in one compact unit. It sits between the 3kVA and 5kVA models and suits home backup, off-grid and ESS installations, as well as larger vehicle and marine systems.
Key features
- Uninterrupted power (UPS): takes over within milliseconds if the grid or generator drops out, so computers and sensitive electronics keep running.
- PowerControl and PowerAssist: set your grid or generator limit and the MultiPlus-II reduces charging to avoid overload, then supplements the supply from the battery during peak demand.
- ESS ready: a core building block of a Victron Energy Storage System, including Dynamic ESS.
- Two AC outputs: the second output only runs when AC input is present, keeping non-essential loads off the battery.
- Adaptive charging: suits lithium, AGM and gel batteries.
- Scalable: parallel and three-phase configurations supported.
- Monitoring: pair with a GX device such as the Cerbo GX for local and remote monitoring via the free VRM portal and app.
Specifications
| Part number | PMP482405012 |
| Nominal battery voltage | 48V (DC input range 38–60V) |
| AC output | 230VAC ±2%, 50Hz |
| Continuous output power | 4,000W at 25°C / 3,700W at 40°C / 3,000W at 65°C |
| Time-limited power | 4.5kW for 2 hours / 6kW for 25 minutes (cold start) |
| Peak power | 7,000W |
| Maximum efficiency | 95% |
| Max. battery charge current | 55A |
| Charge voltage | Absorption 57.6V / Float 55.2V |
| Transfer switch / max AC input | 32A |
| AC input range | 187–265VAC, 45–65Hz |
| Zero-load power | 20W (13W AES mode, 8W search mode) |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts |
| Dimensions (H x W x D) | 590 x 275 x 149 mm |
| Weight | 19 kg |
Need help designing a system? Euromotive Energy is a Victron distributor in Ireland and can advise on batteries, solar, GX monitoring and installation.
