Description

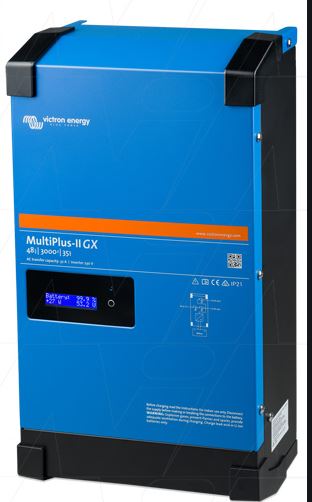

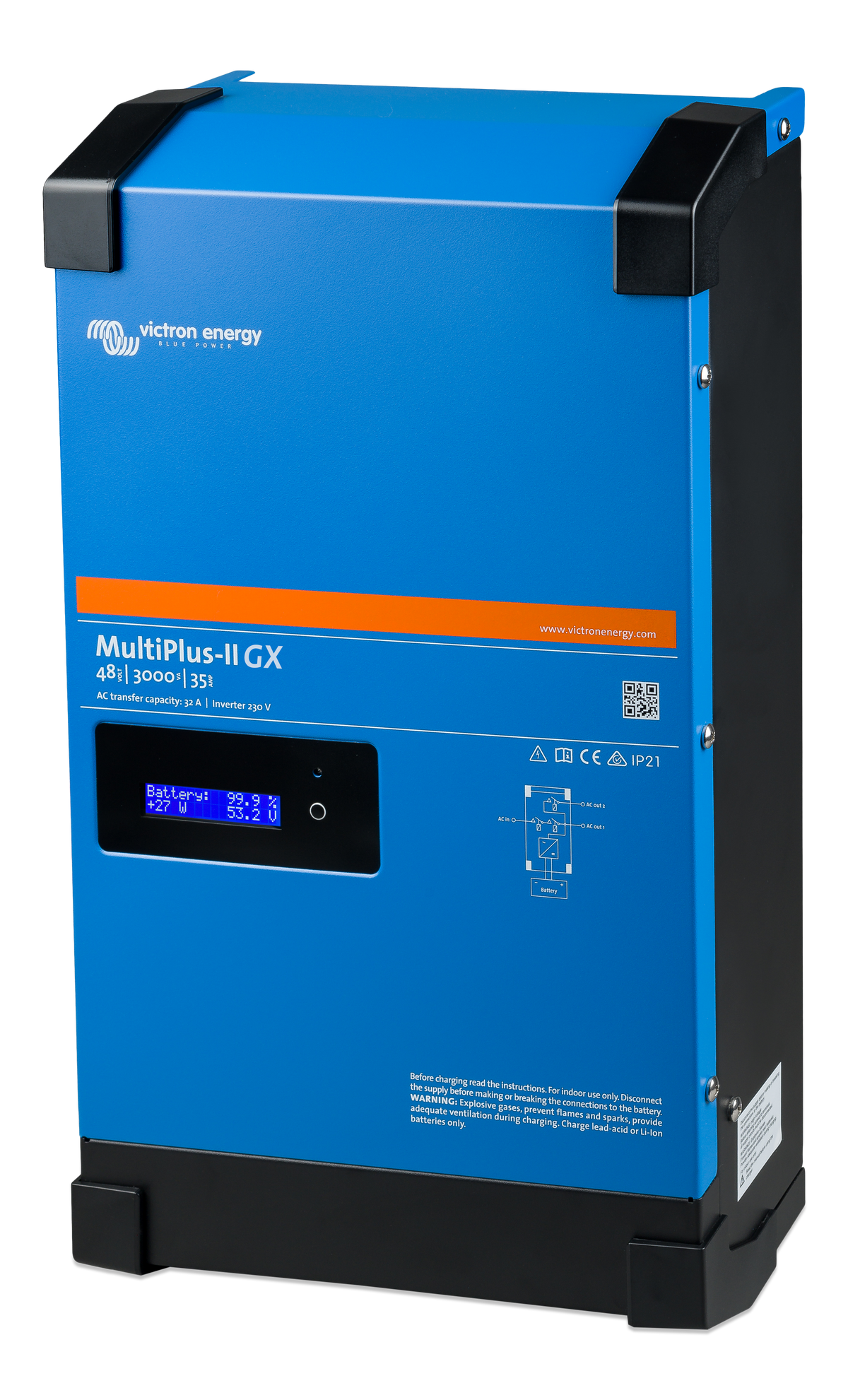

The Victron MultiPlus-II 48/3000/35-32 GX is a 3kVA pure sine wave inverter/charger for 48V battery systems with a GX communication centre built in. It combines the inverter, a 35A adaptive charger and a 32A transfer switch with full system monitoring and control, so you don't need a separate Cerbo GX. Well suited to compact home backup and ESS systems on a 48V lithium bank.
Key features
- Built-in GX: connects to batteries, MPPT solar chargers and other Victron devices to manage the whole system, with a display on the front and remote access via the free VRM portal and app.
- Uninterrupted power (UPS): takes over in under 20 milliseconds if the grid or generator drops out.
- PowerControl and PowerAssist: limits draw on a weak supply and boosts it with battery power during peak demand.
- ESS ready: ideal for grid-connected energy storage, including Dynamic ESS.
- Two AC outputs: the second output only runs when AC input is present.
- Adaptive charging: suits lithium, AGM and gel batteries.
- Scalable: parallel and three-phase configurations supported.
Specifications
| Part number | PMP482306000 |
| Nominal battery voltage | 48V |
| AC output | 230VAC ±2%, 50Hz |
| Rated power | 3,000VA |
| Continuous output power | 2,400W at 25°C |
| Peak power | 5,500W |
| Max. battery charge current | 35A |
| Transfer switch | 32A |
| Communication | VE.Bus (2 x RJ45) plus integrated GX |
| Battery connection | M8 bolts |
| Dimensions (H x W x D) | 506 x 275 x 147 mm |
| Weight | 20 kg |
Need help designing a system? Euromotive Energy is a Victron distributor in Ireland and can advise on batteries, solar, monitoring and installation.
