Description

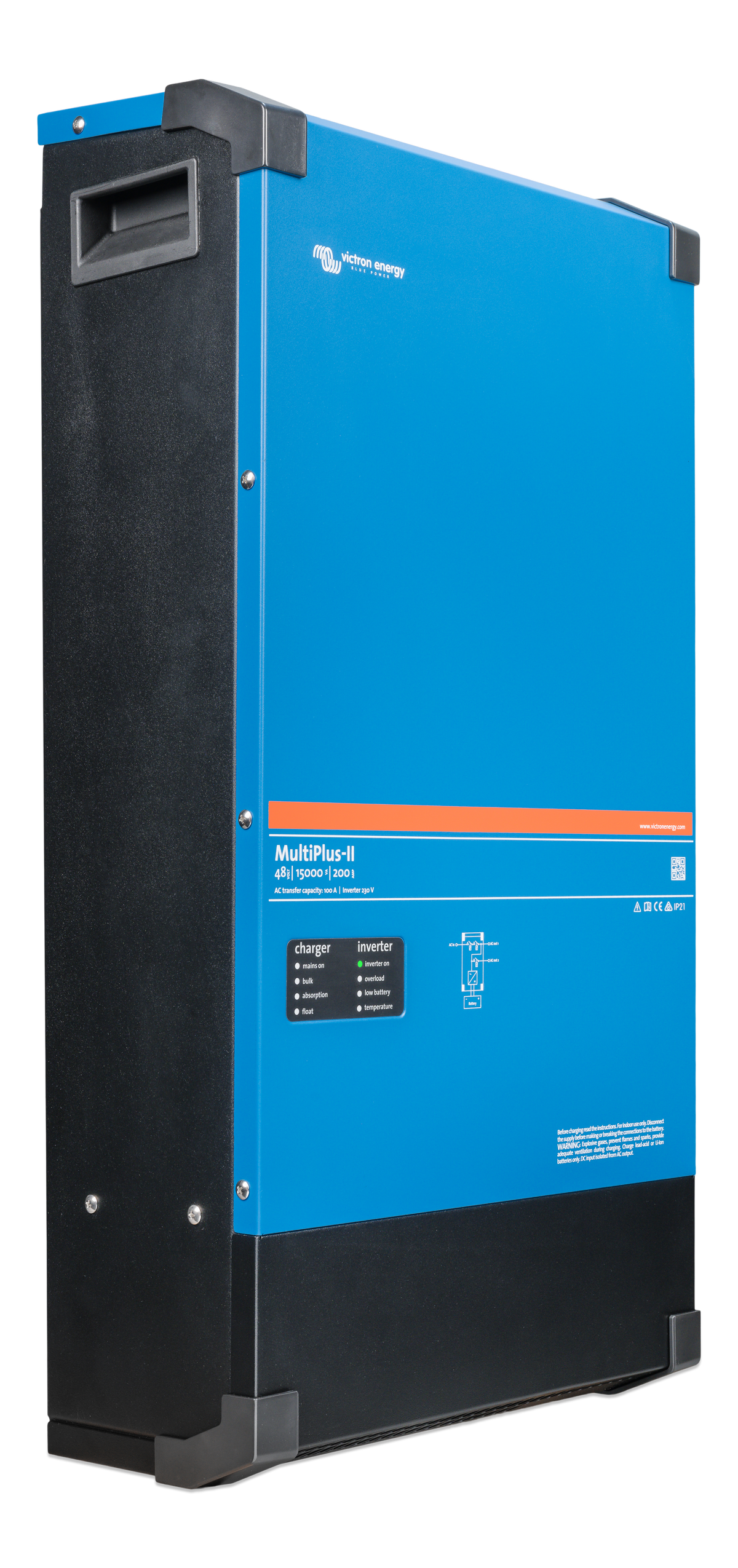

The Victron MultiPlus-II 48/15000/200-100 is the largest MultiPlus-II: a 15kVA pure sine wave inverter, a 200A adaptive battery charger and a 100A automatic transfer switch for 48V battery systems. It's designed for large estates, commercial and agricultural sites, and high-capacity ESS or off-grid systems.
Key features
- Uninterrupted power (UPS): takes over in under 20 milliseconds if the grid or generator drops out.
- 200A charger: recharges very large battery banks quickly from grid or generator.
- PowerControl and PowerAssist: limits draw on a weak grid or generator and boosts it with battery power during peak demand.
- ESS ready: the core of a Victron Energy Storage System, including Dynamic ESS.
- Two AC outputs: the second output only runs when AC input is present.
- Adaptive charging: suits lithium, AGM and gel batteries.
- Scalable: parallel and three-phase configurations supported.
- Monitoring: pair with a GX device such as the Cerbo GX for local and remote monitoring via VRM.
Specifications
| Part number | PMP483150000 |
| Nominal battery voltage | 48V |
| AC output | 230VAC ±2%, 50Hz |
| Rated power | 15,000VA |
| Continuous output power | 12,000W at 25°C |
| Peak power | 27,000W |
| Max. battery charge current | 200A |
| Transfer switch | 100A |
| Communication | VE.Bus (2 x RJ45) |
| Battery connection | M8 bolts (two positive, two negative) |
| AC connection | M6 bolts |
| Dimensions (H x W x D) | 810 x 405 x 217 mm |
| Weight | 80 kg |
Need help designing a system? Euromotive Energy is a Victron distributor in Ireland and can advise on batteries, solar, GX monitoring and installation.
