Description

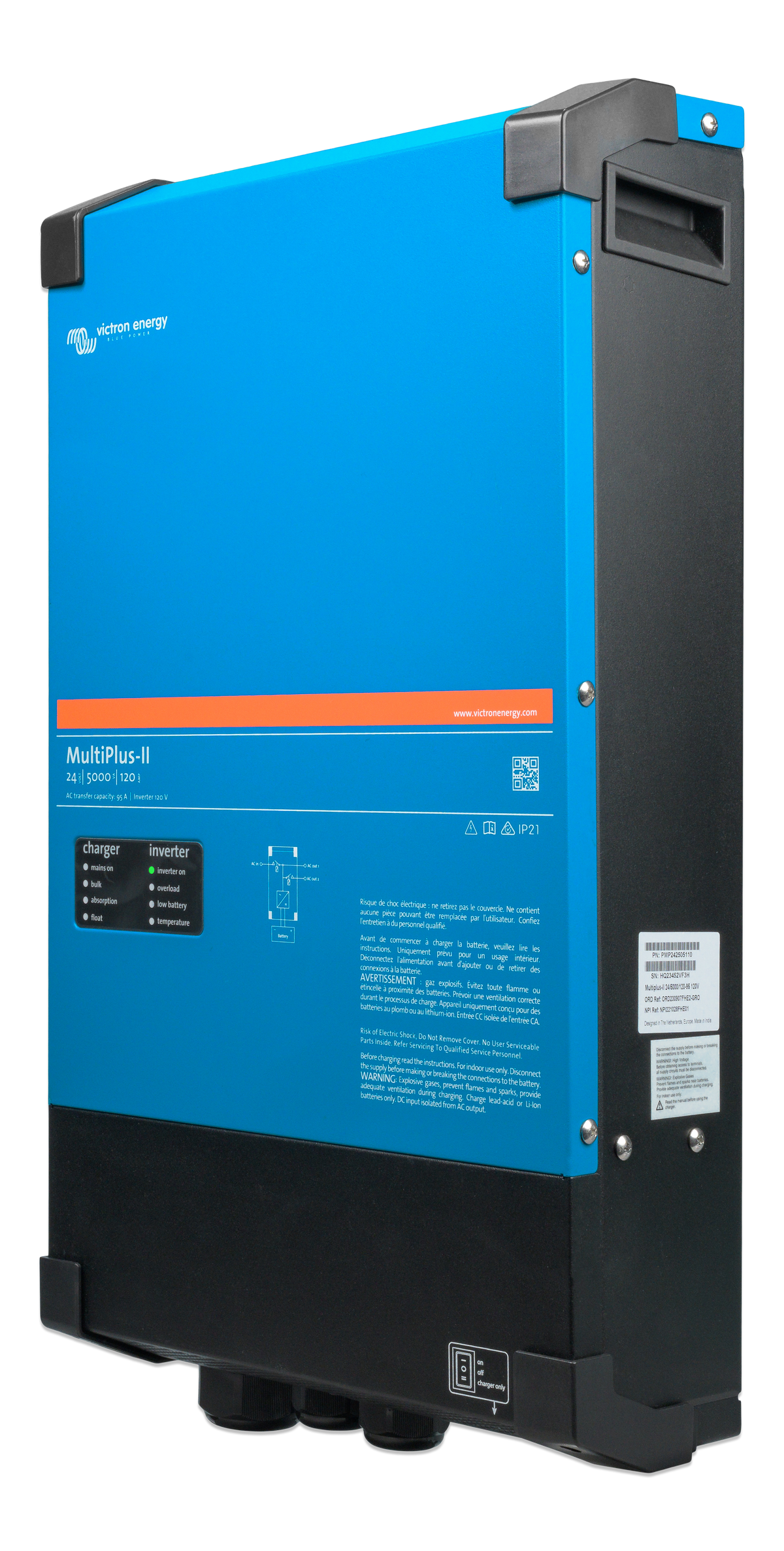

The Victron MultiPlus-II 24/5000/120-95 120V is a 5kVA inverter/charger for 24V battery systems with 120V AC output, for North American-spec installations such as US-built RVs and boats. It combines a pure sine wave inverter, a 120A adaptive charger and a 95A transfer switch in one unit.
Key features
- 95A transfer switch: passes through a large 120V supply to your loads.
- Uninterrupted power (UPS): switches to inverter within milliseconds if shore or generator power drops out.
- PowerControl and PowerAssist: limits draw on a weak supply and boosts it with battery power during peak demand.
- Two AC outputs: the second output only runs when AC input is present.
- 120A adaptive charger: suits lithium, AGM and gel batteries.
- Scalable and connected: parallel and split/three-phase capable; add a GX device for VRM remote monitoring.
Specifications
| Part number | PMP242505110 |
| Nominal battery voltage | 24V |
| AC output | 120VAC, 60Hz |
| Rated power | 5,000VA |
| Continuous output power | 4,000W at 25°C |
| Peak power | 9,000W |
| Max. battery charge current | 120A |
| Transfer switch | 95A |
| Communication | VE.Bus (2 x RJ45) |
| Dimensions (H x W x D) | 627 x 350 x 150 mm |
| Weight | 29 kg |
Note: this is a North American 120V model. For Irish and European 230V systems, see the MultiPlus-II 24/5000/120-50 230V.
