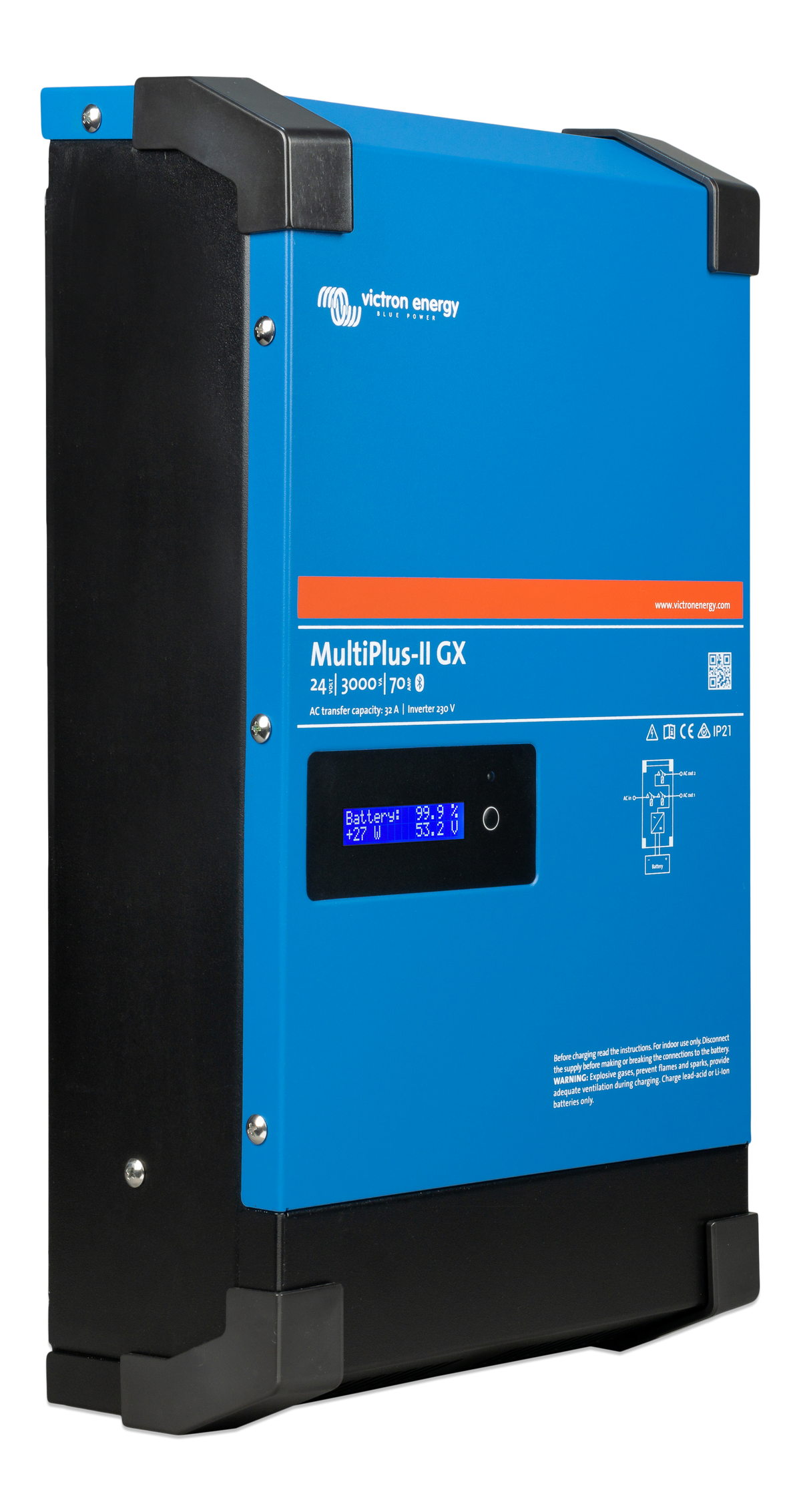

Victron MultiPlus-II 24/3000/70-32 GX – Inverter/Charger with Integrated GX (24V DC, 230V AC)
The Victron MultiPlus-II 24/3000/70-32 GX is a feature-rich inverter/charger with a built-in GX device, ideal for system integrators and users who want powerful off-grid or hybrid energy management. It combines a 3kVA pure sine wave inverter, 70A battery charger, 32A transfer switch, and advanced remote monitoring—all in one compact unit for 24V battery systems and 230V AC output.
Key Features:
-
✅ All-in-One Solution with Integrated GX:
Built-in GX device (like Cerbo GX) provides real-time system data, touchscreen display compatibility, and remote access via Victron’s VRM portal. -
✅ 3kVA / 2400W Pure Sine Wave Inverter:
Delivers clean 230V AC power from a 24V battery bank—suitable for sensitive electronics, appliances, and tools. -
✅ 70A Battery Charger:
Multi-stage adaptive charging supports lithium, AGM, GEL, and flooded lead-acid battery types with rapid and efficient performance. -
✅ 32A Transfer Switch:
Seamless automatic switching between inverter and AC input (grid or generator), ensuring continuous power flow. -
✅ ESS-Ready:
Fully compatible with Energy Storage Systems—ideal for solar self-consumption, grid support, and backup use. -
✅ Parallel & Three-Phase Capable:
Connect multiple units for higher output or 3-phase supply using VE.Bus communication.
Technical Specifications:
-
Model: MultiPlus-II 24/3000/70-32 GX
-
Inverter Output: 3000VA / 2400W continuous
-
Battery Voltage: 24V DC
-
Charger Output: 70A
-
AC Output Voltage: 230V ±2%, 50Hz
-
Peak Power: ~6000W
-
AC Transfer Switch: 32A
-
Max Efficiency: ~94%
-
Integrated GX Features:
-
Remote monitoring (VRM Portal)
-
System diagnostics and logs
-
Touchscreen (GX Touch) and Cerbo GX compatibility
-
-
Connectivity: VE.Bus, VE.Direct, VE.Can, USB, Ethernet
-
Protection Rating: IP22
-
Dimensions: 499 × 268 × 141 mm
-
Weight: ~19 kg
Applications:
-
Off-grid homes and solar-powered cabins
-
Hybrid inverter setups for grid-tied backup
-
Boats, RVs, and mobile workstations
-
Commercial or agricultural solar storage systems
-
System integrators needing advanced remote access
📦 Includes: Victron MultiPlus-II 24/3000/70-32 GX inverter/charger with built-in GX device
🚚 Fast EU-wide shipping available
