Description
| Feature | Description |
|---|---|
| Type | Midi Fuses |
| Ampere | 30/40/50/60/70/80/100/125/150 |
| Color | multiple |
| Max. Working Voltage | 32V |
| Temperature Rating | No |
| According requirements | ISO 8820 JASO D612 and other standards |
| Length ( L ) | 41.0mm |
| Width | 12.0mm |
| Height ( H ) | 8.0mm |
| Bolt | Ø 5.4mm |

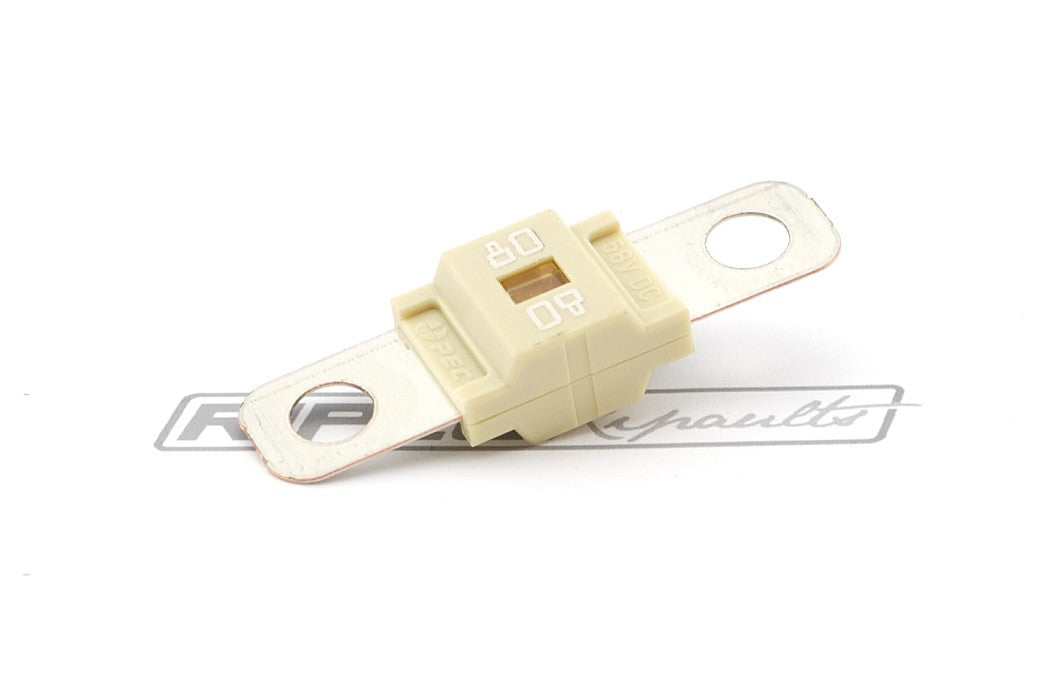

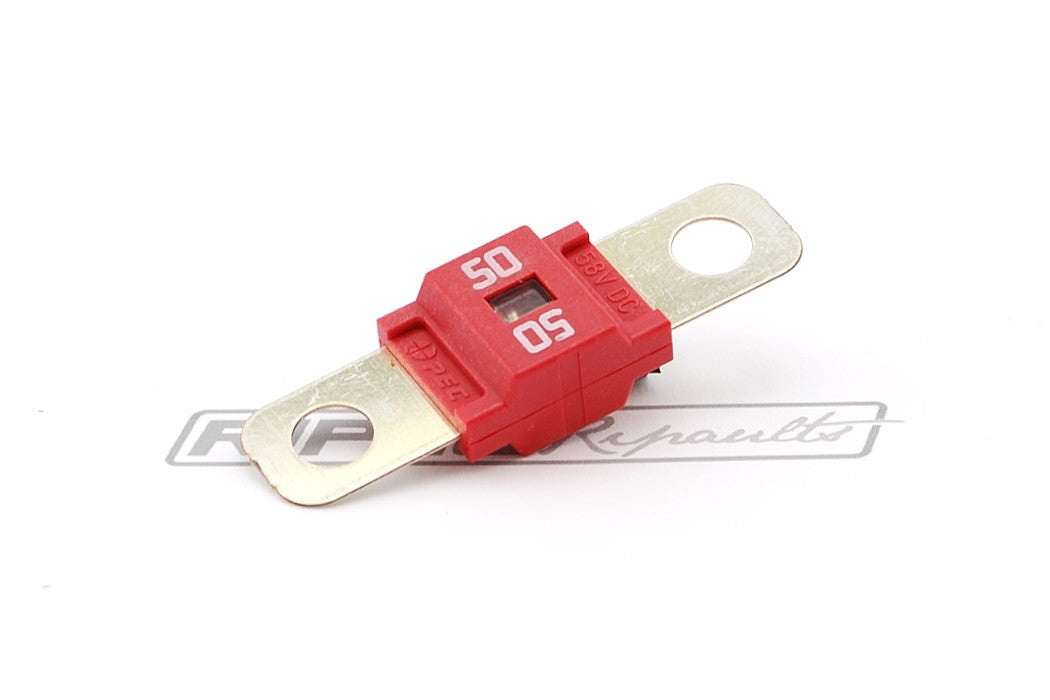

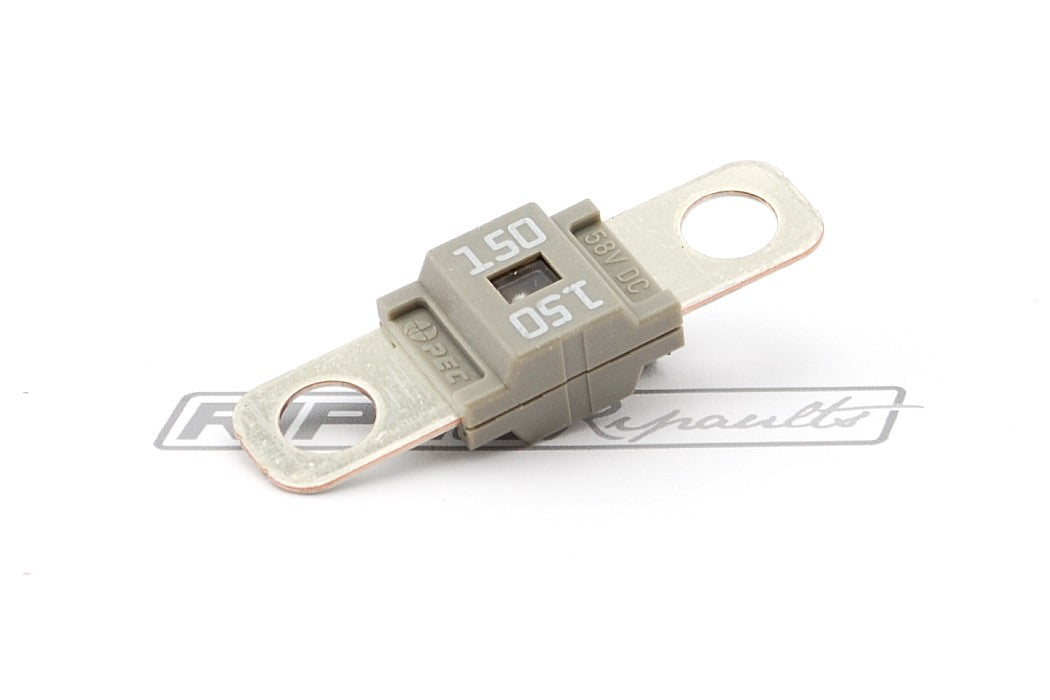

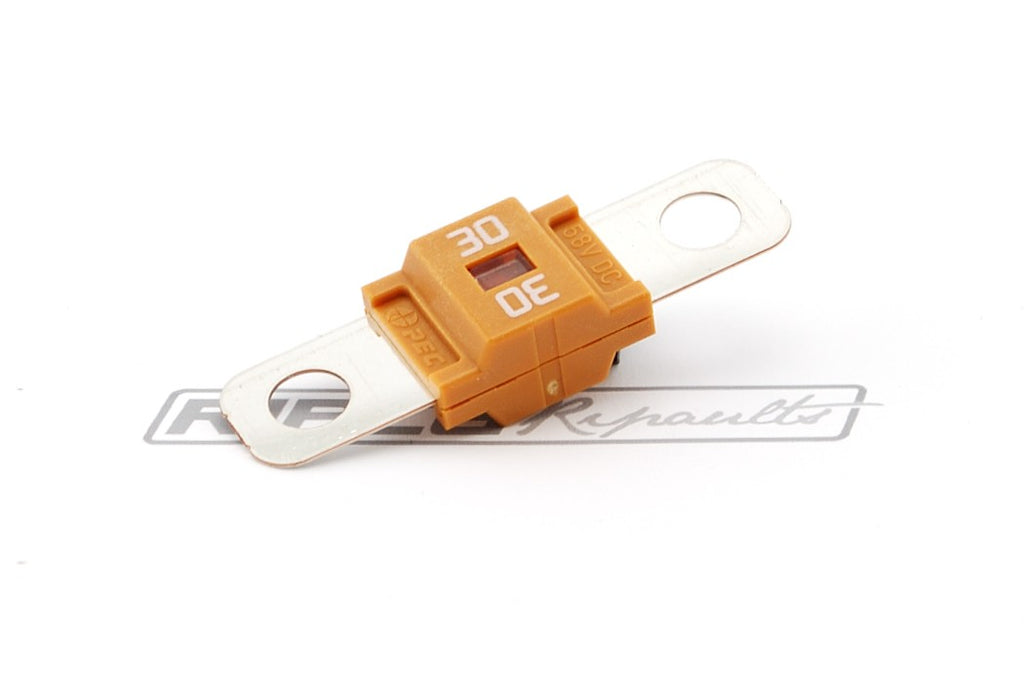

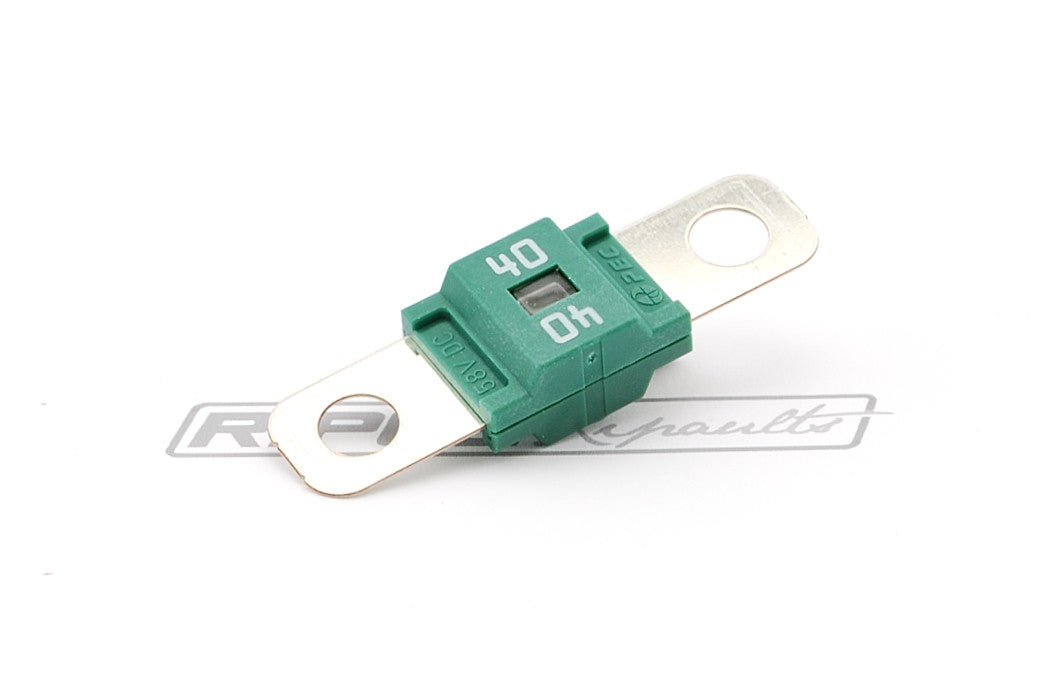

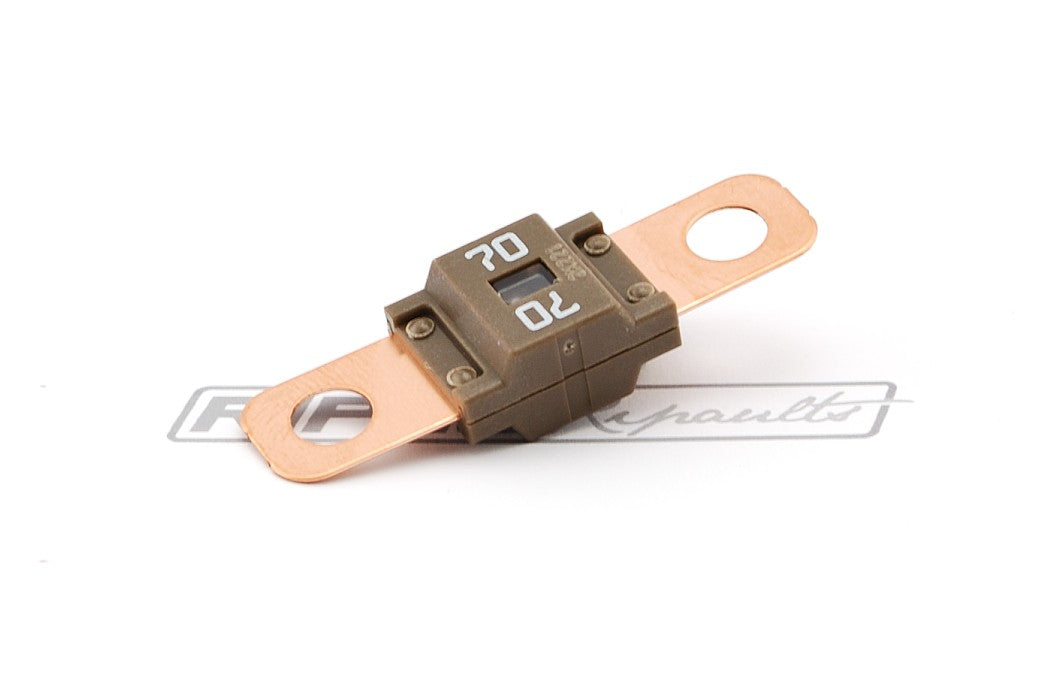

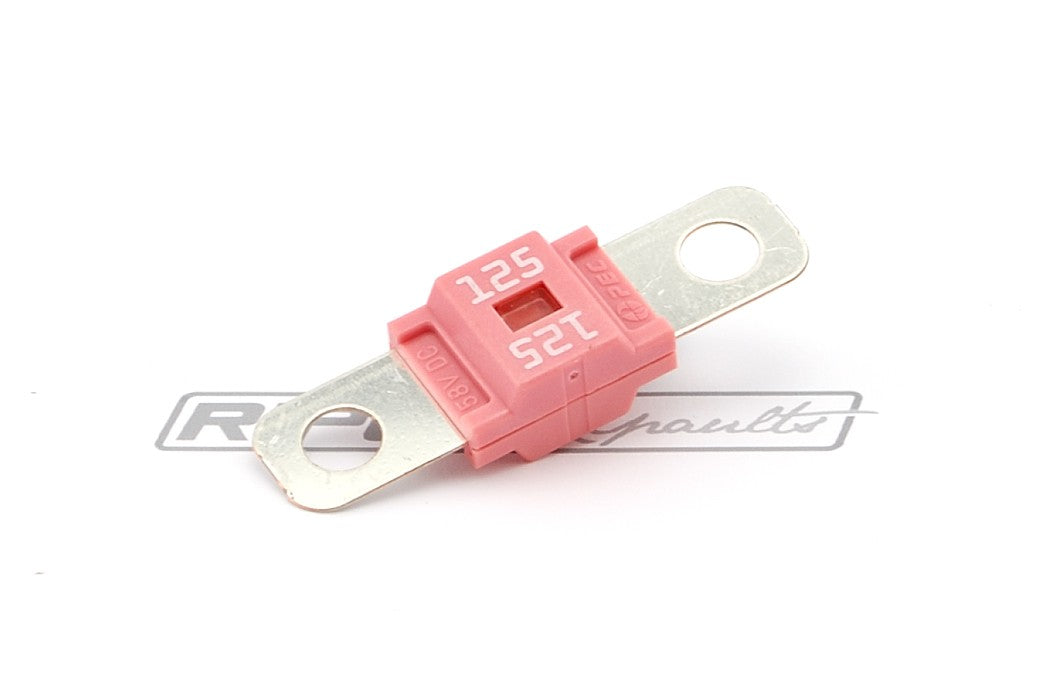

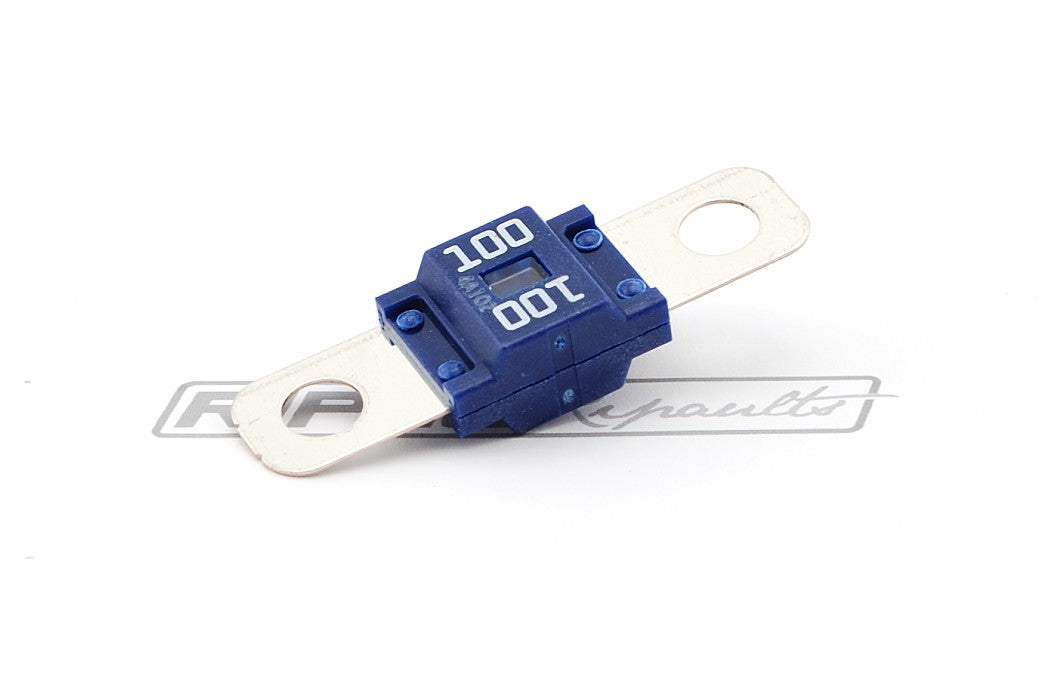

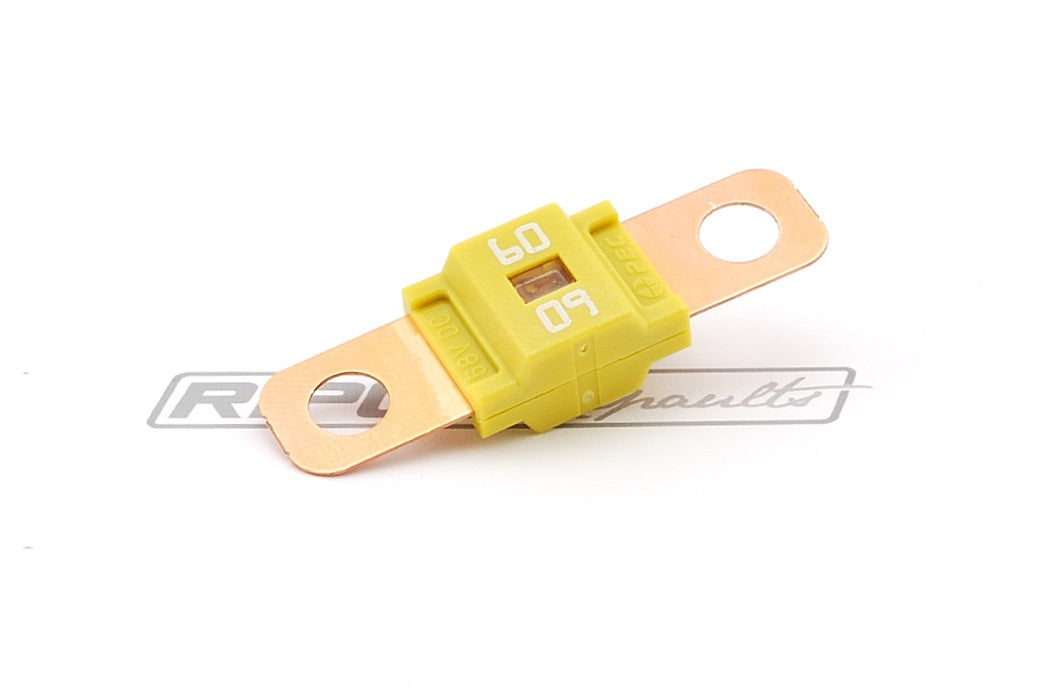

A MIDI fuse is a compact, high-current fuse, commonly used in automotive and marine applications. It features a bolt-down design that allows for secure and reliable installation. The MIDI fuse is designed to protect high-current circuits, utilizing diffusion pill technology to provide time-delay characteristics, which helps in managing current surges and spikes. With a voltage rating typically at 32VDC and an interrupting rating of 2000A at 32VDC, it ensures the safety and longevity of electrical components. The MIDI fuse is available in a range of current ratings from 30A to 200A, making it versatile for various applications. The housing material is usually PA66-GF25 with a UL 94 flammability rating of V0 for black housings, and PA6/66 with a UL 94 flammability rating of HB for clear housings, ensuring durability and resistance to high temperatures. The fuses are color-coded for easy identification and are available with one or two mounting holes for installation flexibility. They comply with ISO 8820-5:2015 standards and are recognized under UL 248-1 as special-purpose fuses. These fuses are essential for protecting wiring harnesses in vehicles and other high-current applications, providing a reliable solution for circuit protection.
