Lynx Distributor (M10)

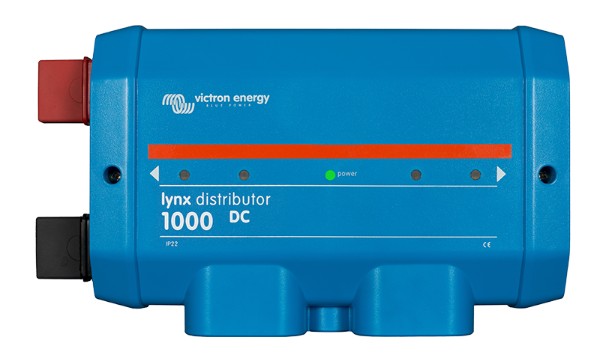

Victron Lynx Distributor (M10) – Modular DC Busbar with Fuse Monitoring (12V–48V DC)

The Victron Lynx Distributor (M10) is a modular DC distribution system designed to provide safe, high-current power distribution and real-time fuse monitoring. Supporting 12V, 24V, and 48V battery systems, it’s an essential component for professional energy storage and DC installations — including marine, RV, off-grid solar, and industrial setups.

Key Features:

• Voltage Compatibility: 12V, 24V, and 48V DC systems

• Current Rating: Supports up to 1000A continuous current

• Fuse Protection: Accommodates 4x MEGA fuses (not included) for high-current DC circuits

• LED Fuse Monitoring: Each circuit includes an LED that lights up when a fuse blows

• Terminal Configuration:

  • 4x M8 fuse terminals for outgoing DC circuits

  • 4x M8 negative busbar terminals

  • Dedicated grounding point

  • M10 internal links for modular connection to other Lynx units

• Modular System: Part of the Victron Lynx modular series — connects seamlessly with Lynx Power In, Lynx Shunt VE.Can, and Lynx Smart BMS

• Monitoring Integration: Communicates fuse status to Victron systems via included RJ10 cable when connected to a Lynx Smart BMS or Lynx Shunt VE.Can

Technical Specifications:

• Voltage Range: 9–60V DC

• Fuse Types Supported: MEGA fuses (1 per circuit, not included)

• Power Supply for LEDs: 5V input via RJ10 connection

• Power Consumption: Up to 100mA (max, all LEDs lit)

• Operating Temperature: -40°C to +60°C

• Protection Rating: IP22

• Dimensions: 290 x 170 x 80 mm

• Weight: 2.2 kg

Applications:

• Marine systems – Distribute power to navigation electronics, pumps, and onboard systems

• RV and vehicle installations – Simplify wiring for high-current accessories

• Off-grid and backup energy systems – Distribute power from lithium battery banks, MPPTs, and inverters

• Industrial DC setups – Add organized, monitored circuit protection in complex installations

Installation Notes:

• Requires MEGA fuses sized appropriately for each connected circuit

• RJ10 cable enables communication with Victron Lynx Smart BMS or Lynx Shunt VE.Can

• M10 refers to inter-module terminals; all fuse and load connections use M8 studs

📦 What’s Included:

• Victron Lynx Distributor (M10)

• 40cm RJ10 communication cable
  (Fuses sold separately)
