Description
Smart drop-in lithium battery with integrated BMS and self-heating

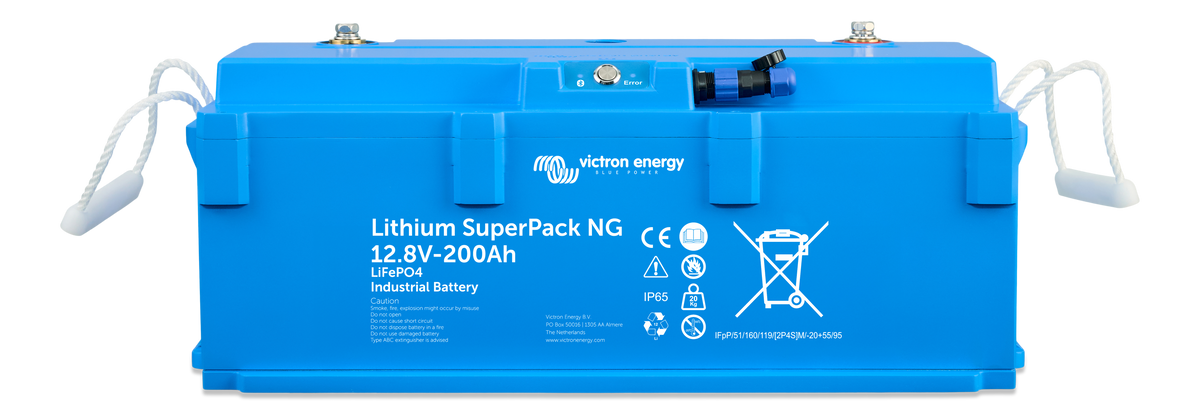

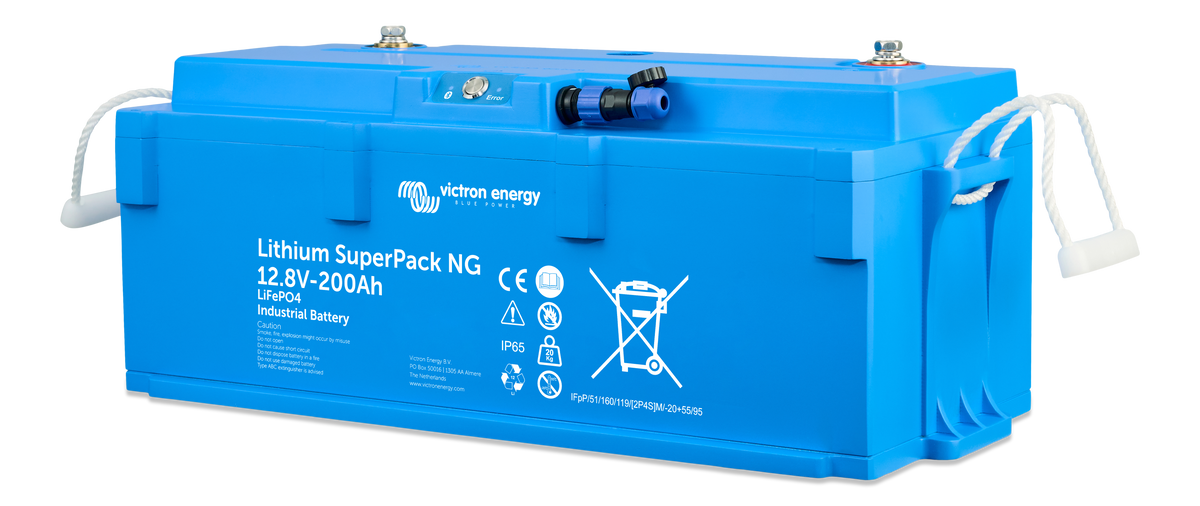

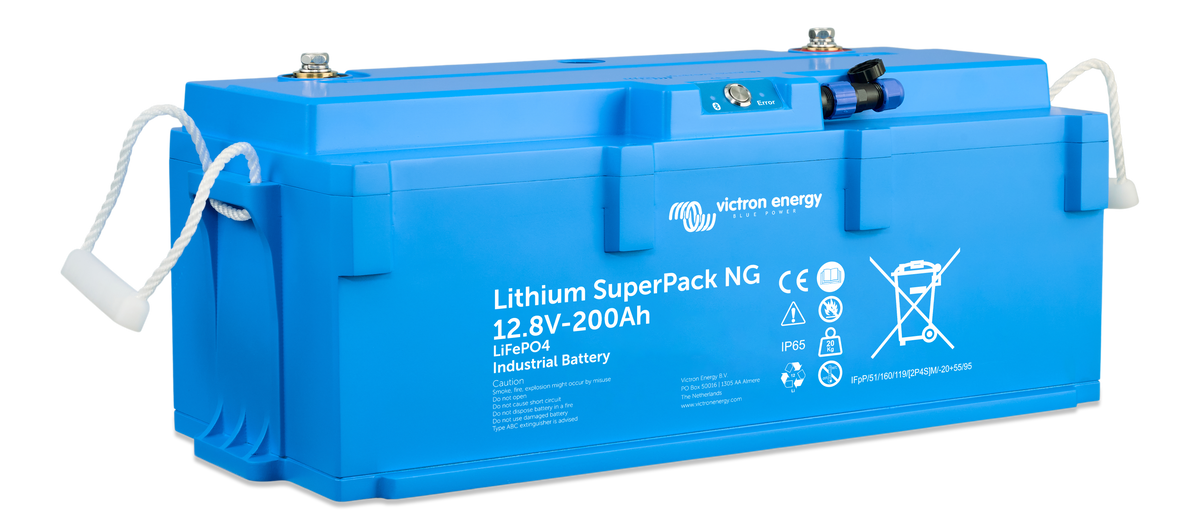

The Lithium SuperPack NG is a smart, drop-in replacement for lead-acid batteries, ideal for retrofits or new builds in vehicles, RVs, boats and off-grid systems. It has an integrated Battery Management System, self-heating for sub-zero charging, and Bluetooth monitoring via the VictronConnect app.
Key features
- Drop-in fit for existing battery spaces
- Built-in BMS with cell balancing and protection – no external system required
- Bi-directional e-switch protects against over-charge and over-discharge
- Self-heating (Charger and Auto modes) enables charging down to -30°C
- Bluetooth: instant readout of state of charge, temperature and alarms in VictronConnect
- External Feedback Signal (EFS) for redundant system protection and charger control
- Configurable discharge floor with Low SoC alarm
- Push-button on/off switch for safe storage up to 6 months
- Unlimited parallel connection
- IP65 water, dust and chemical protection
- 15-year design life, 5-year standard warranty
Specifications
| Part number | BAT512120740 |
| Nominal voltage | 12,8 V |
| Nominal capacity @ 25°C | 200 Ah |
| Nominal energy @ 25°C | 2560 Wh |
| Recommended discharge current | 100 A |
| Max. continuous discharge current | 400 A |
| Recommended charge current | 60 A |
| Max. continuous charge current | 200 A |
| Recommended charge voltage | 14,0 V |
| Float voltage | 13,5 V |
| End of discharge voltage | 11,2 V |
| Internal resistance | 1 mΩ |
| Cycle life (@ 80% DoD) | 2500 cycles |
| Operating temperature | -30°C to +60°C |
| Power connection | M8 female threaded insert |
| Protection | IP65 |
| Bluetooth | Yes – VictronConnect app |
| Weight | 20,5 kg |
| Dimensions (L x W x H) | 466 x 198 x 173 mm |
