Description

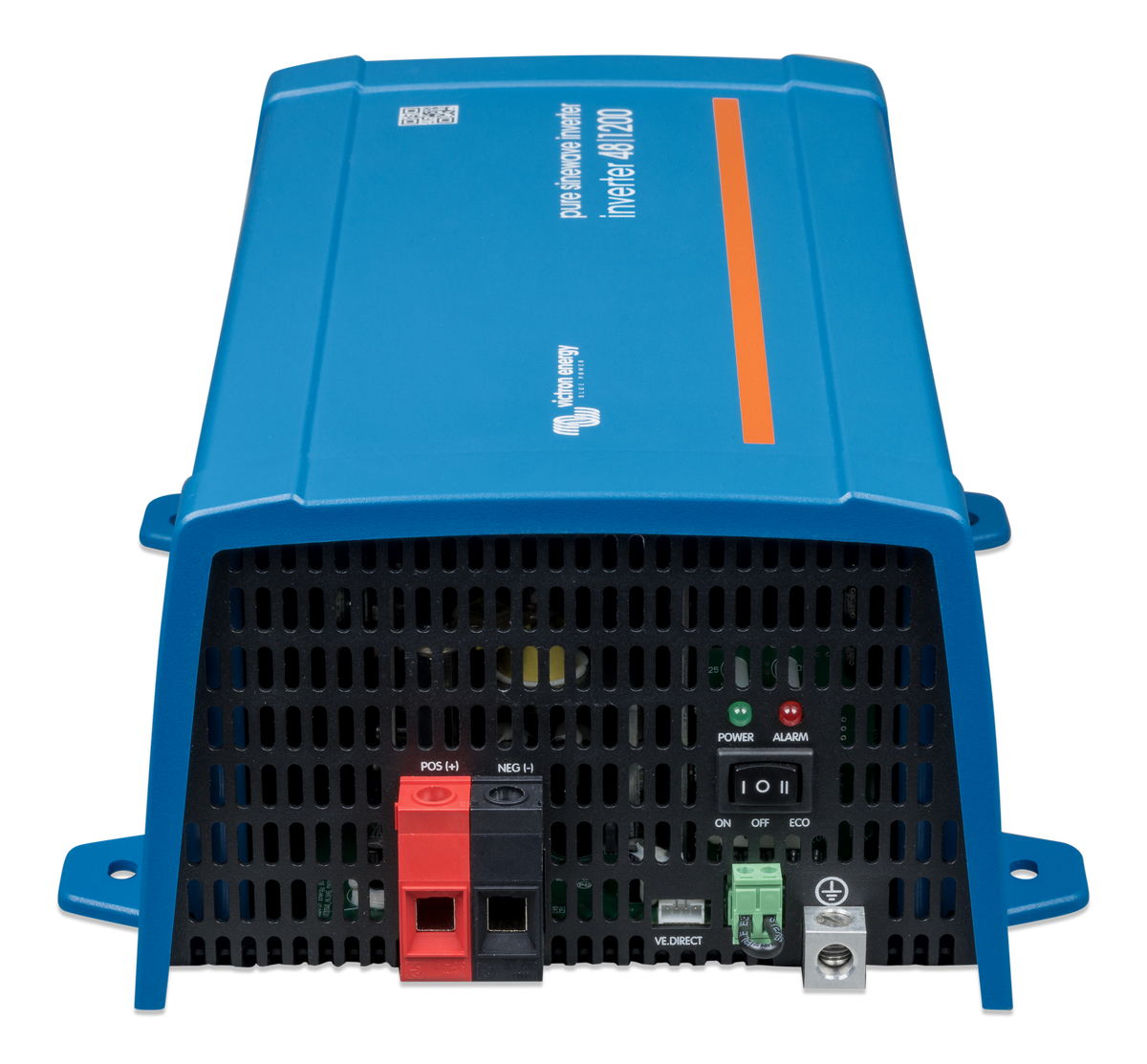

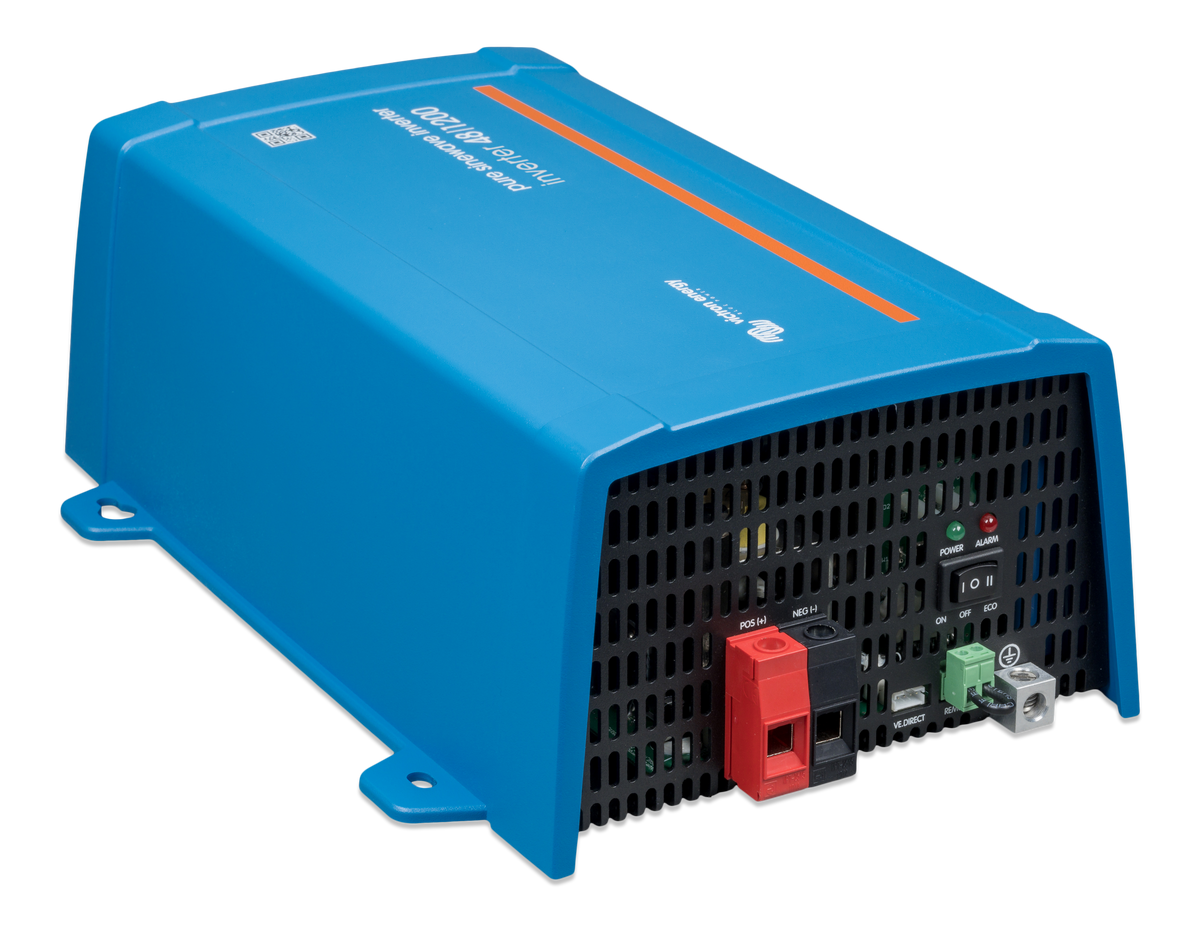

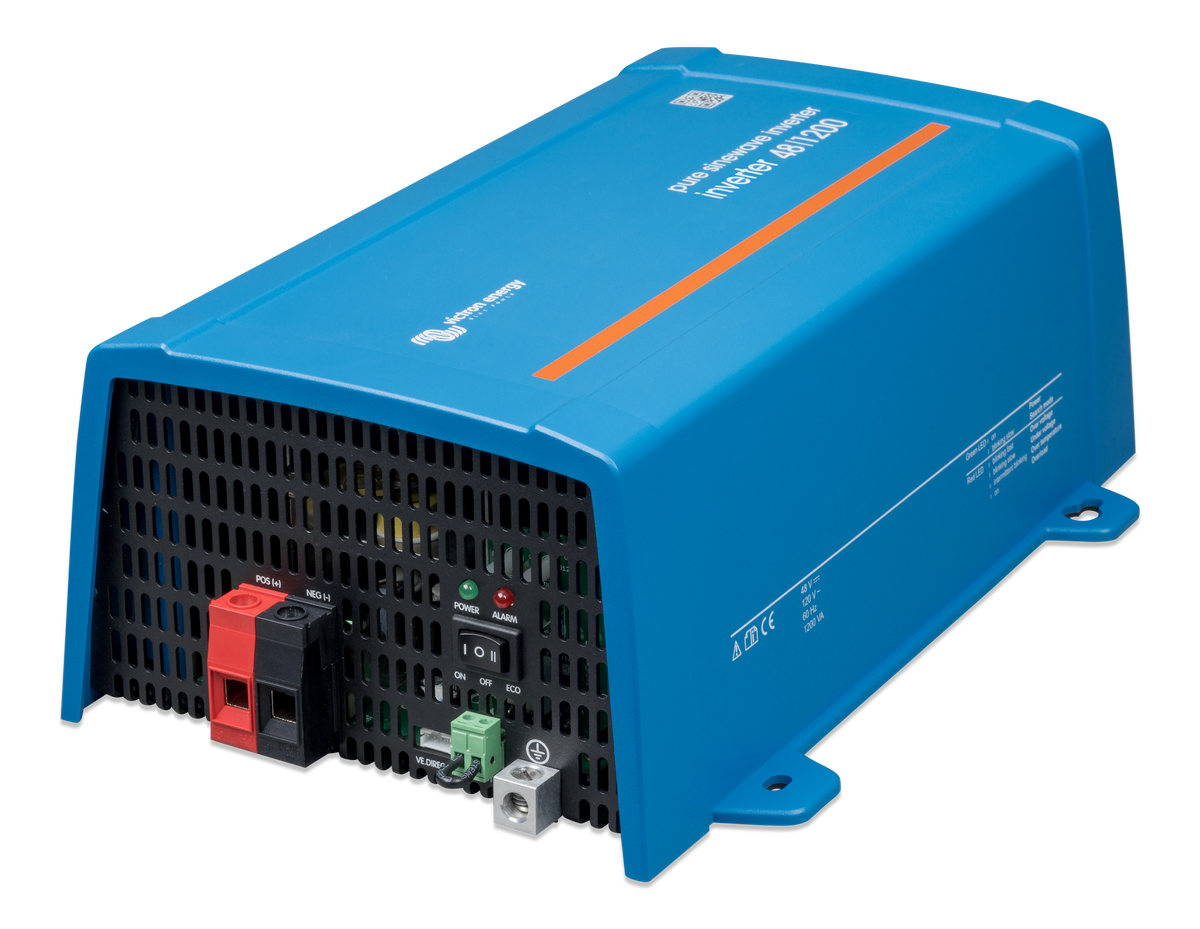

The Victron Phoenix Inverter 48/1200 120V VE.Direct with NEMA GFCI outlet turns a 48V battery into 120V 60Hz pure sine wave power for North American-spec equipment. The built-in GFCI outlet adds ground-fault protection, and the unit is certified to UL 458 for use in vehicles and RVs.
Key features
- NEMA GFCI outlet: ground-fault protected 120V receptacle.
- UL 458: certified for mobile and RV applications.
- Pure sine wave output: safe for sensitive electronics.
- ECO mode: drops standby consumption when no load is connected.
- VE.Direct port: add a VE.Direct Bluetooth Smart dongle for VictronConnect, or connect to a GX device for VRM.
- Protected: against short circuit, overload, high/low battery voltage and over-temperature.
Specifications
| Part number | PIN482122510 |
| Nominal battery voltage | 48V |
| AC output | 120VAC, 60Hz pure sine wave |
| Rated power | 1,200VA |
| Outlet | NEMA GFCI |
| Certification | UL 458 |
| Communication | VE.Direct |
| Dimensions (H x W x D) | 117 x 232 x 327 mm |
| Weight | 7.4 kg |
Note: this is a North American 120V model. For Irish and European 230V systems, see the 230V Phoenix Inverter range.
