Description

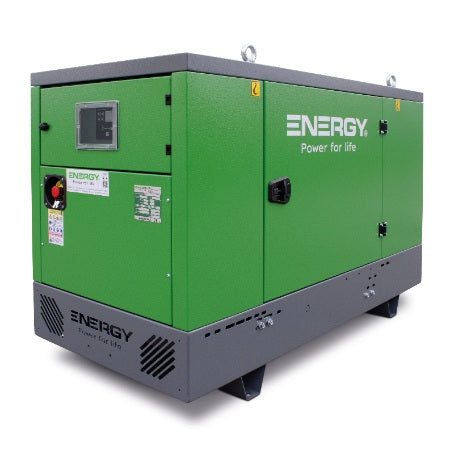

Full 20 kVA output on a single-phase 230 V supply. The ENERGY EY-20P-SA is an Italian-built, sound-attenuated diesel generator powered by a Perkins engine. Its single-phase output suits substantial backup or off-grid power where a properly designed single-phase system is required.
- Prime rating: 20 kVA / 16 kW
- Standby rating: 22 kVA / 17.6 kW
- Output: 230 V single phase, 50 Hz

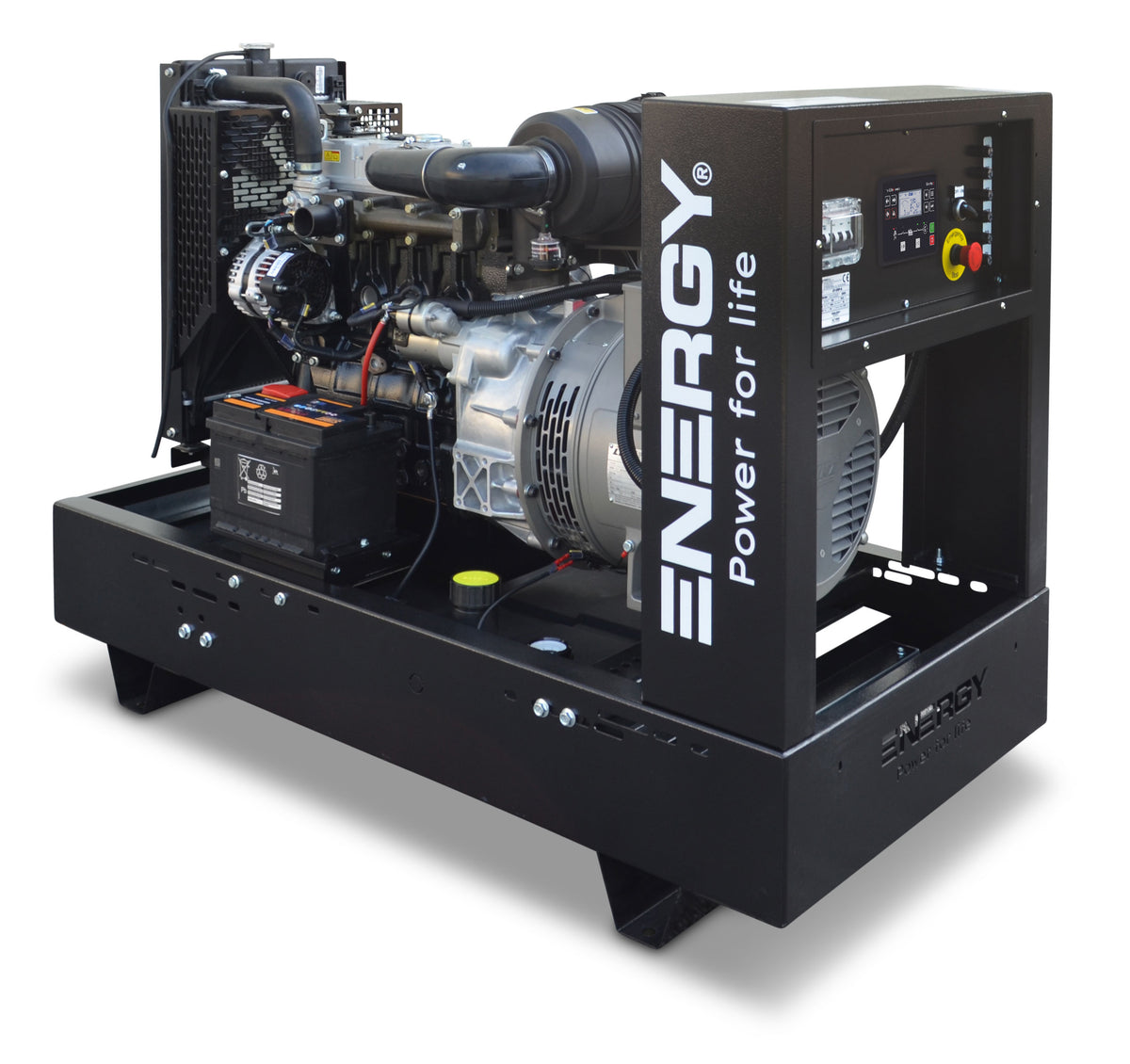

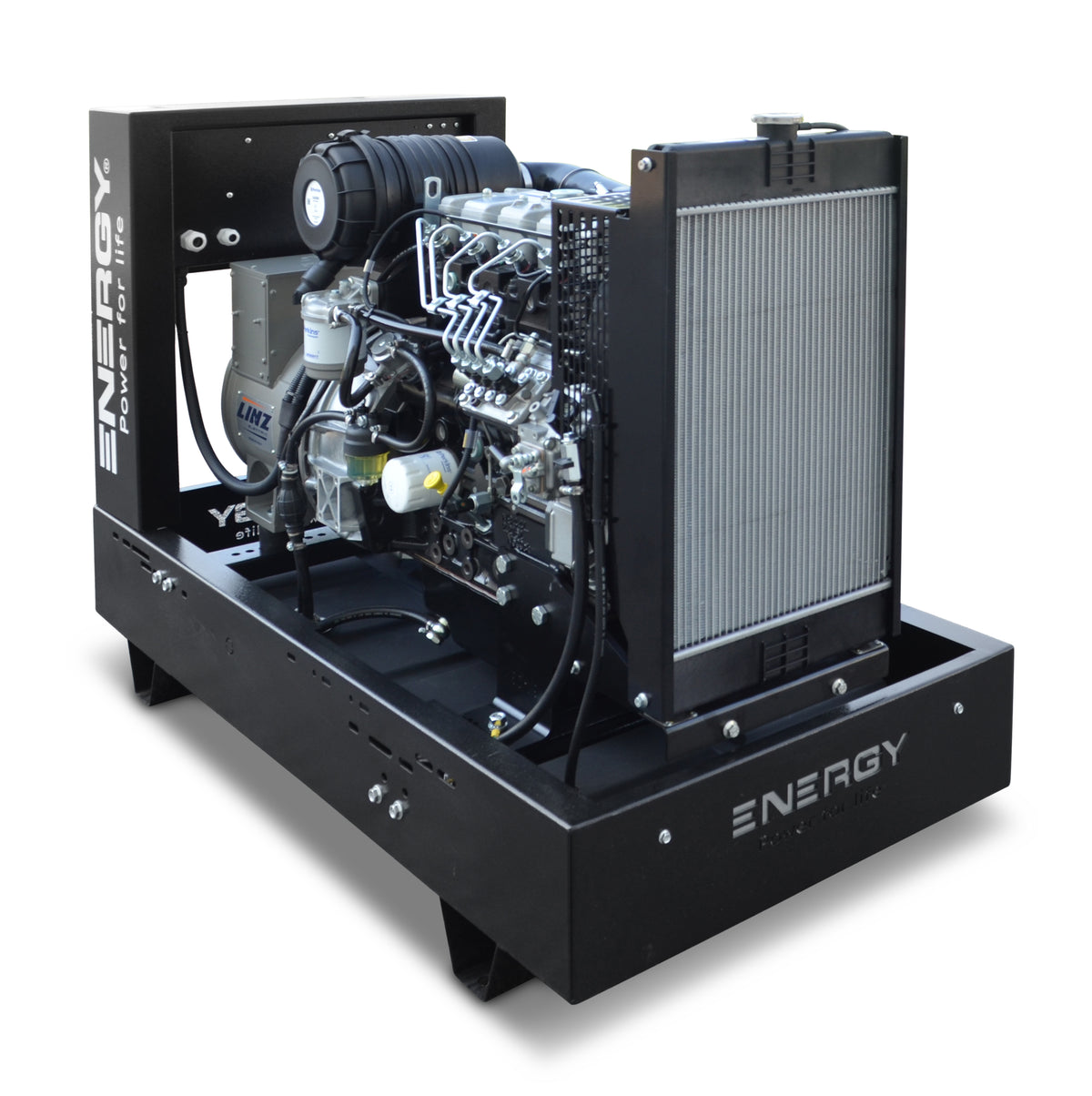

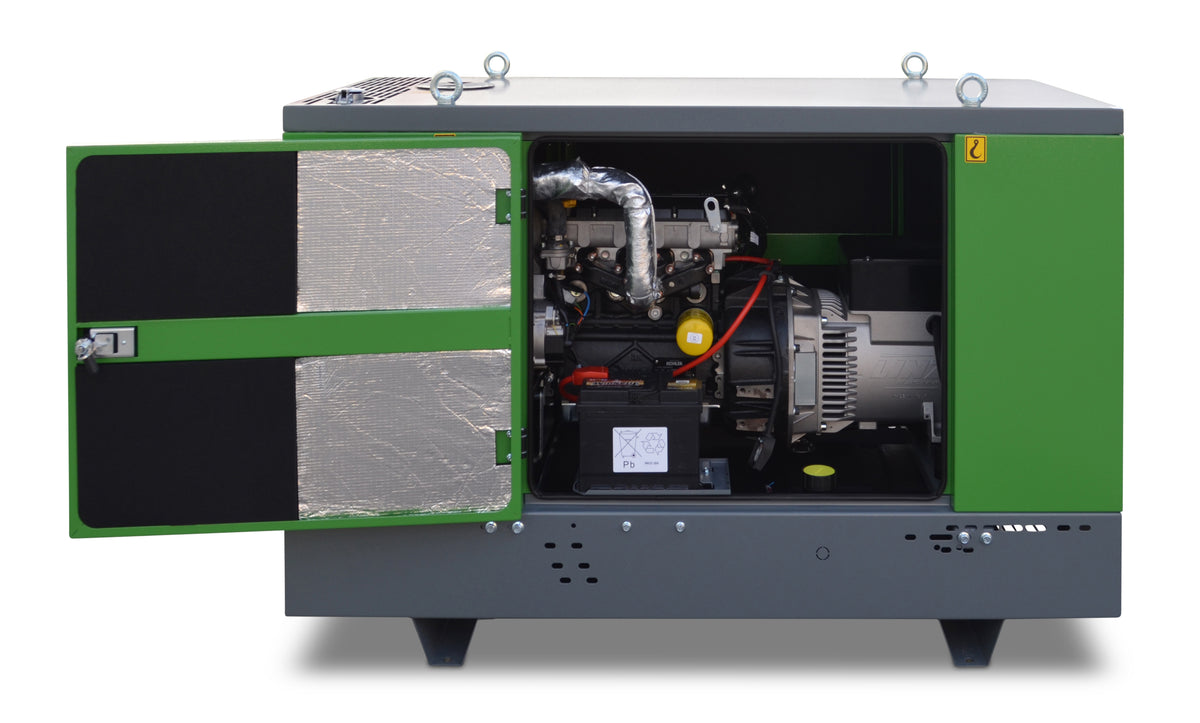

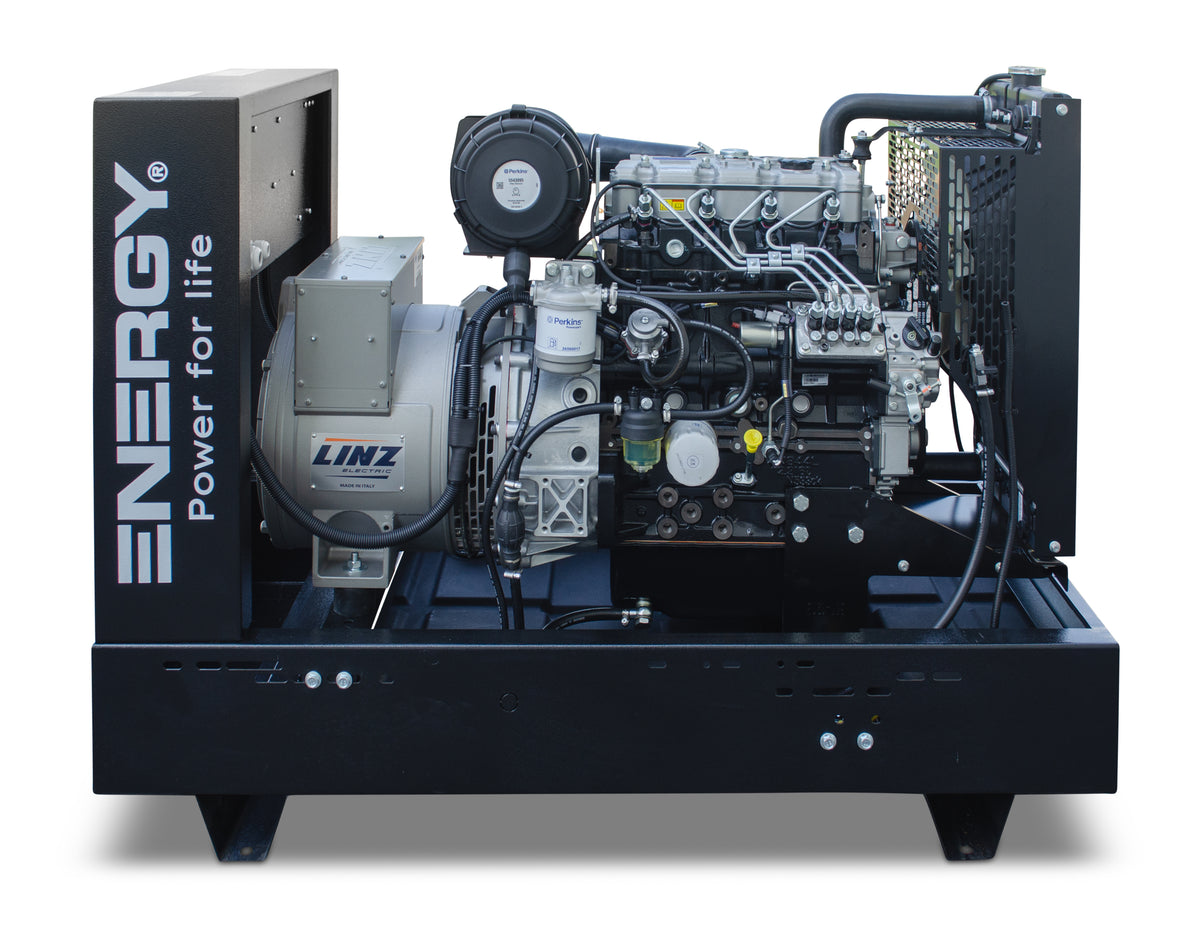

- Perkins 404A-22G1 diesel engine, 1,500 rpm
- Linz PRO18SC/4 alternator, configured for 230 V single phase, with automatic voltage regulation (AVR)

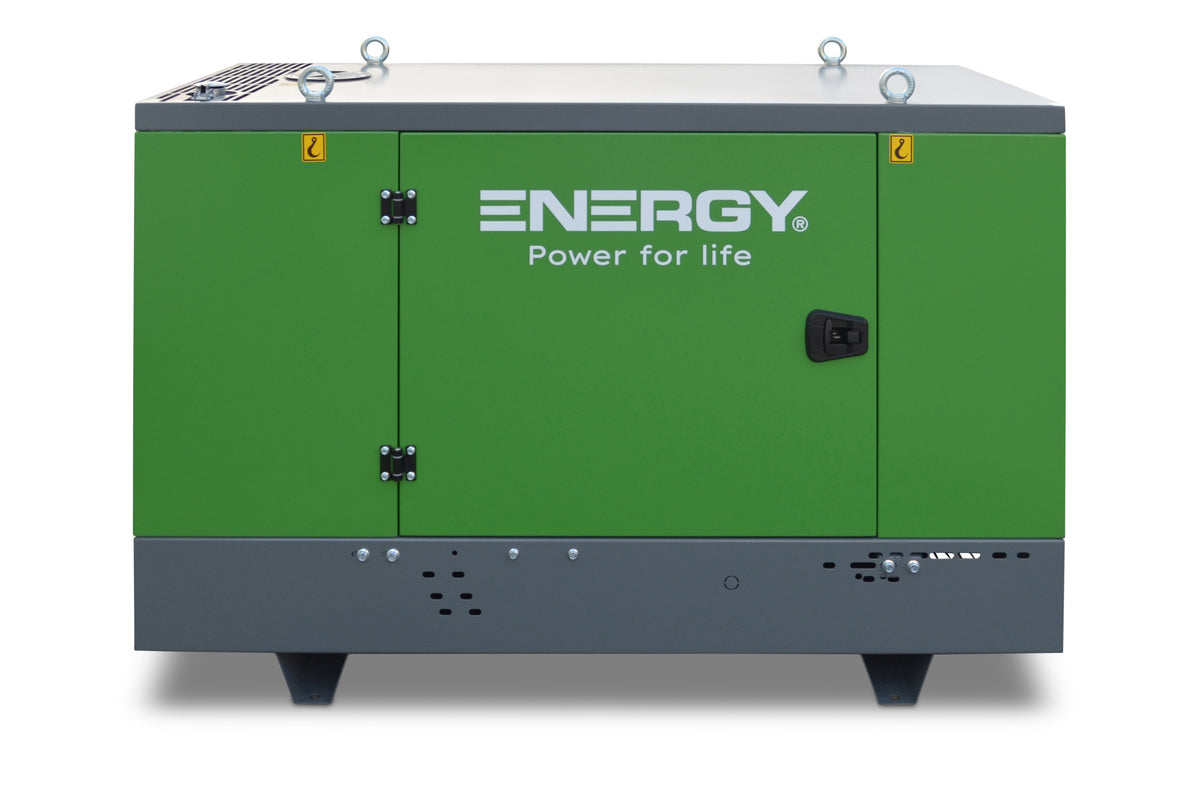

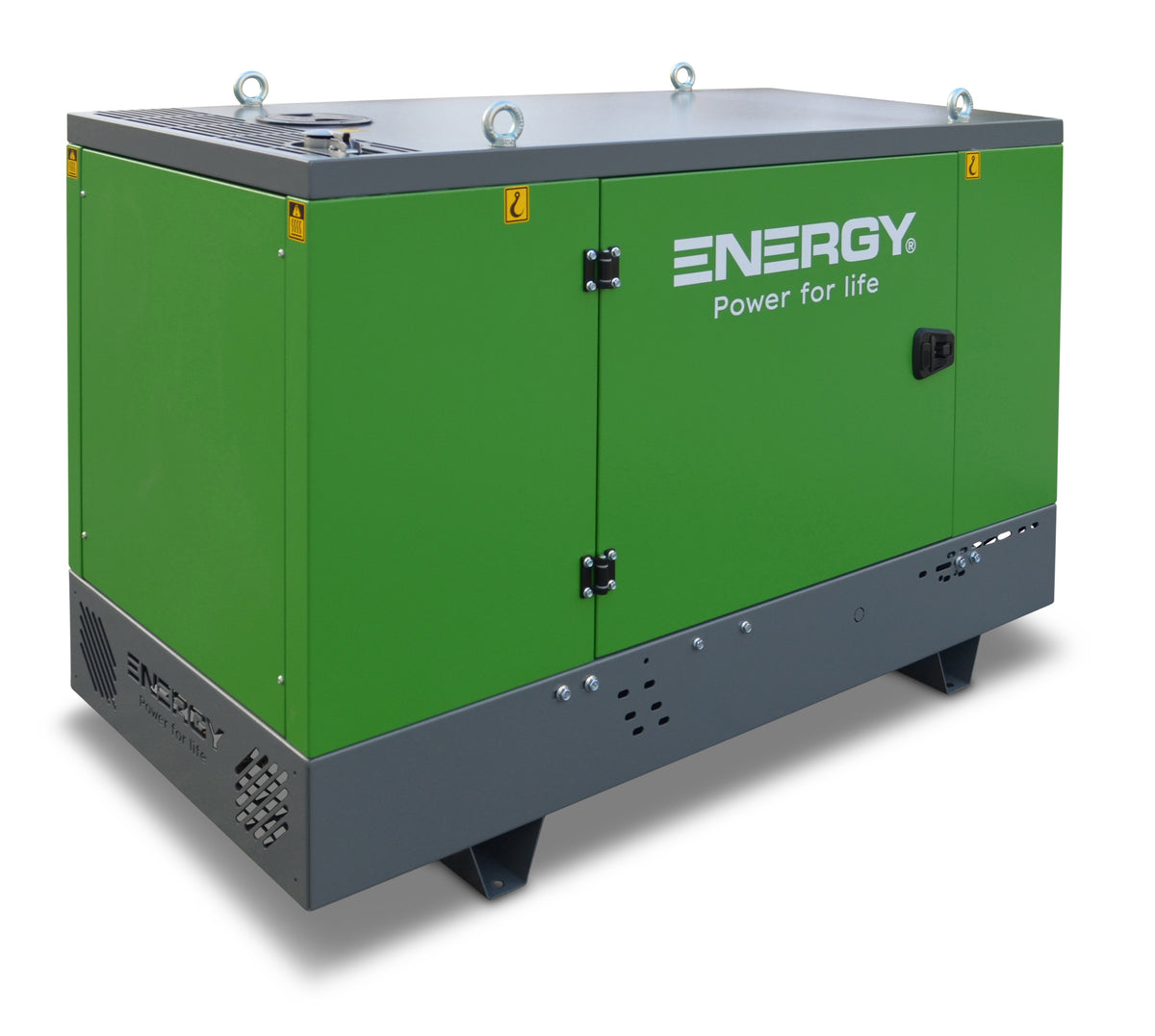

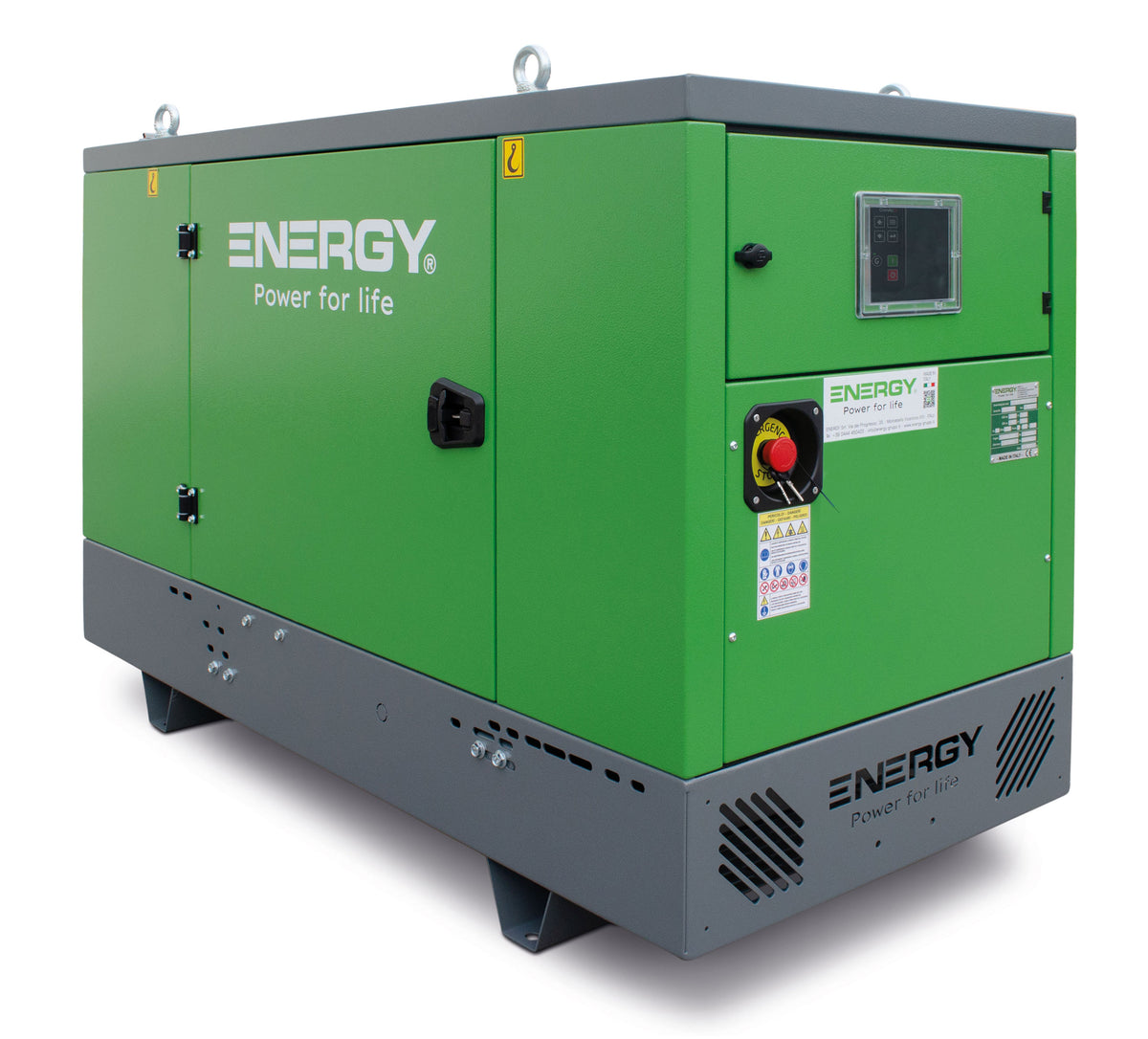

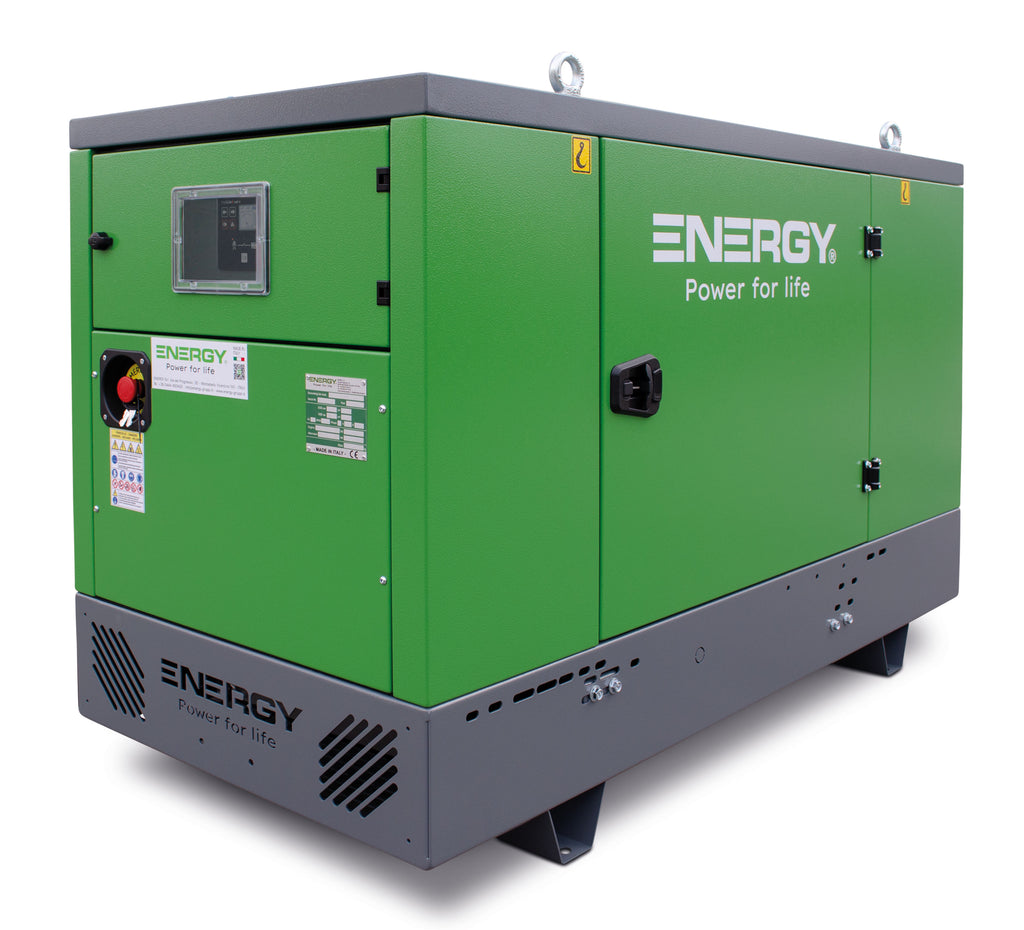

- Sound-attenuated, weatherproof canopy with residential muffler; quoted noise level 70 dB(A) ±3 at 7 m
- Canopy finish: green RAL 6017 with grey RAL 7012 roof, base frame and panel
- Fuel tank with leak containment basin

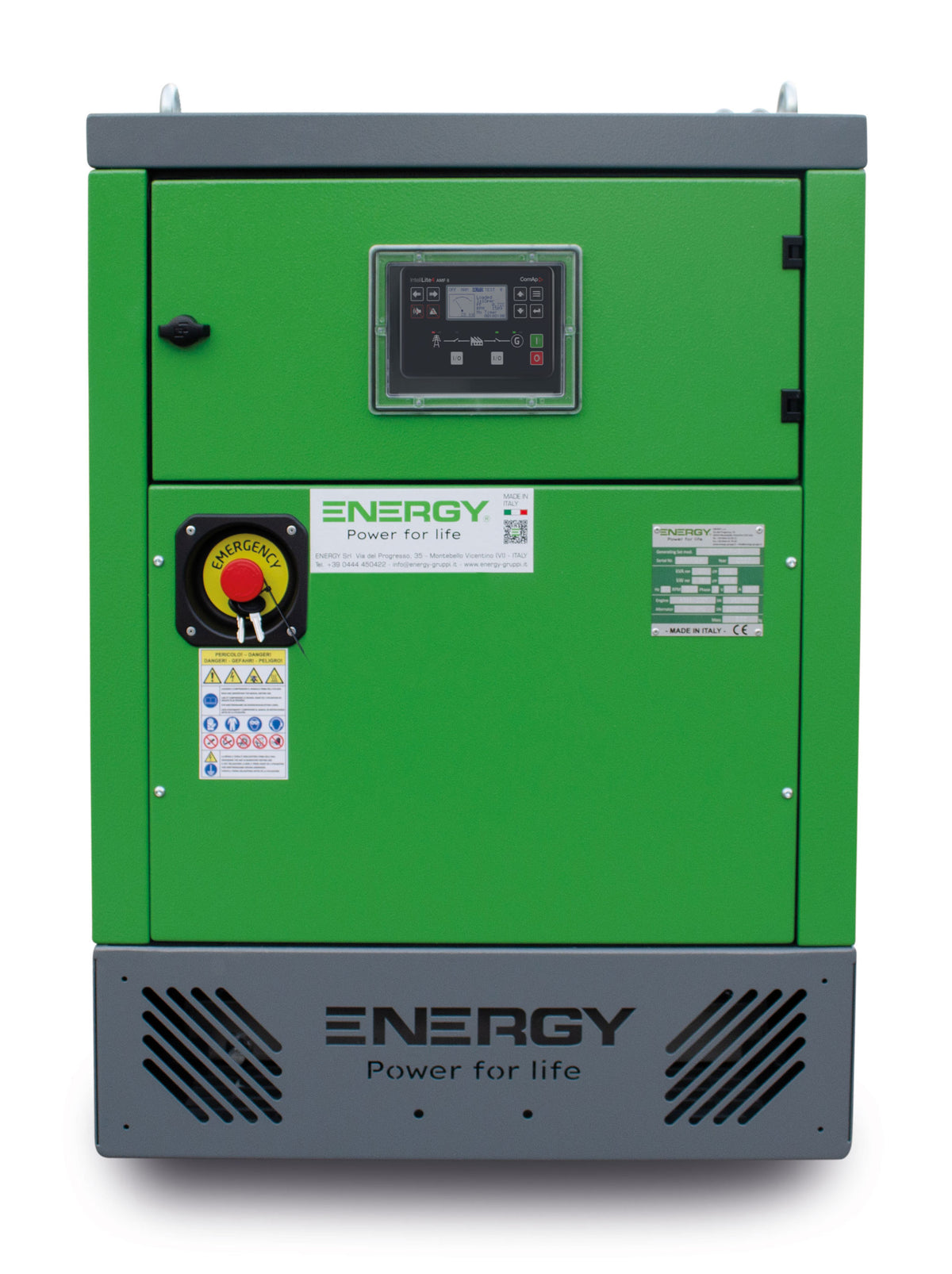

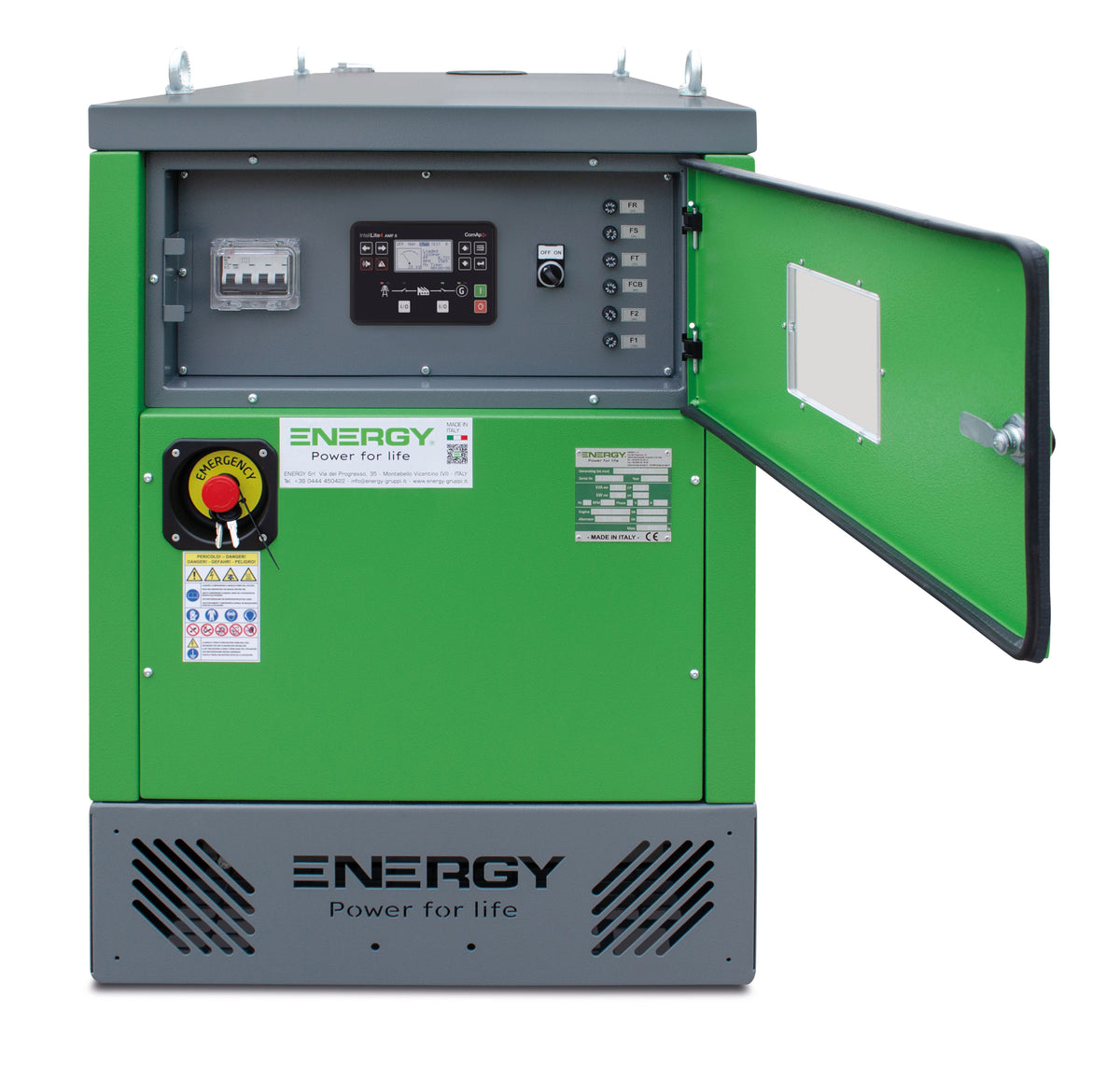

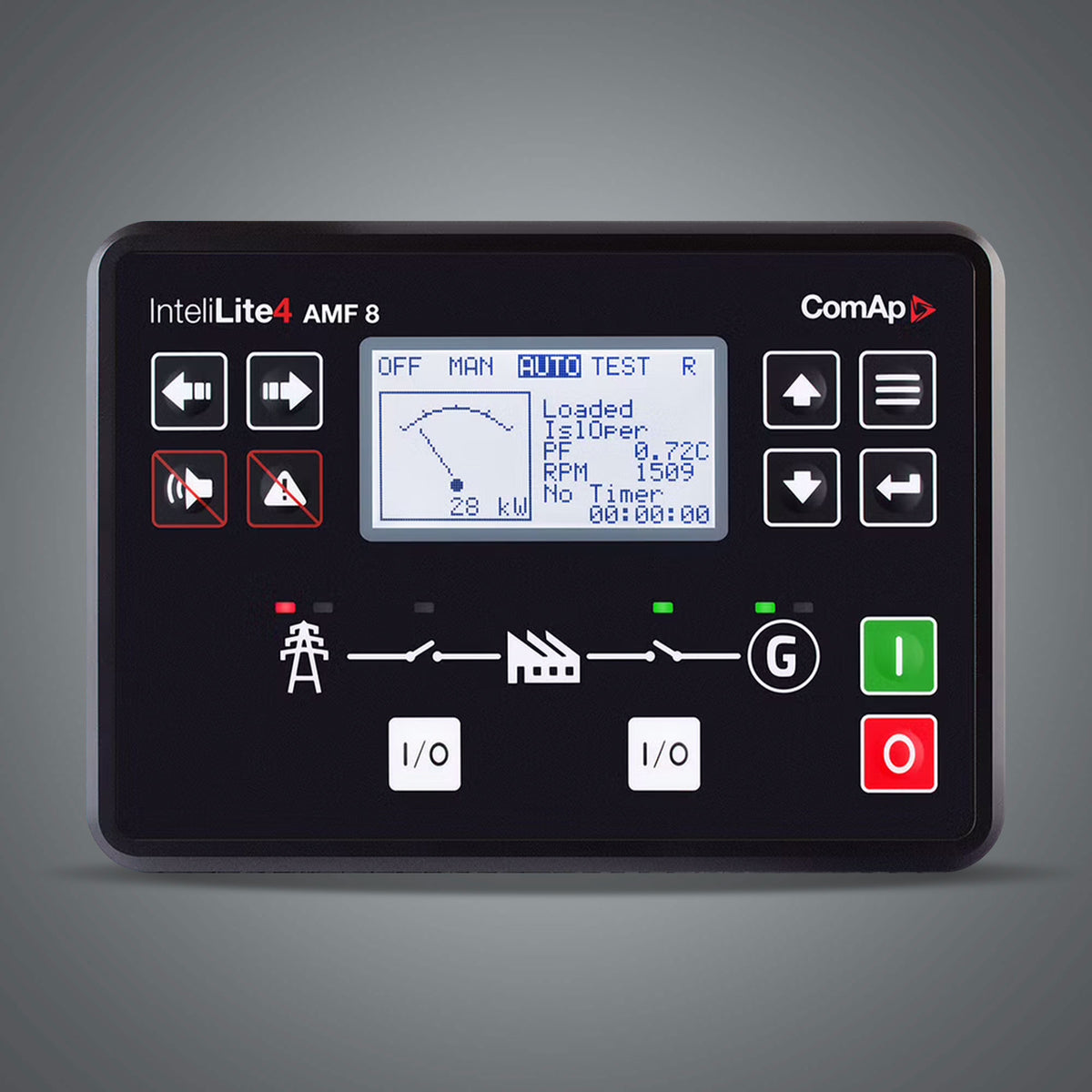

- Automatic mains failure (AMF) panel with AMF8 controller, full-power terminal box, magnetothermal protection and battery charger
- Starting battery, first-fill fluids (excluding fuel), manuals, wiring diagrams and declaration of conformity included by the manufacturer
- Shipping dimensions: 1650 × 750 × 1250 mm (L × W × H) on a pallet; approx. 625 kg

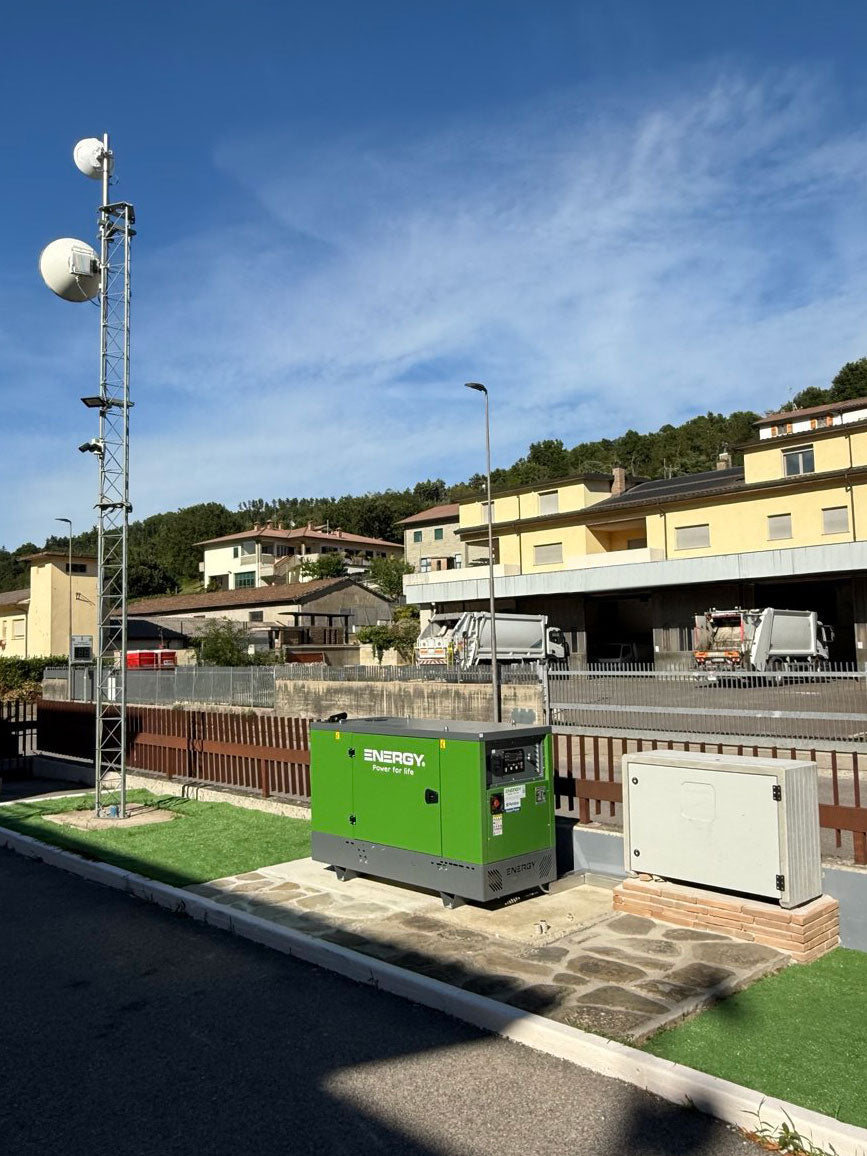

Designed for fixed installation on a level base; must be secured to the ground.
An automatic transfer switch (ATS), installation and site wiring are not included. Before first start, check and fill engine oil to the manufacturer's specified level and connect the starting battery. Contact Euromotive Energy for delivery arrangements and installation options.
