Description

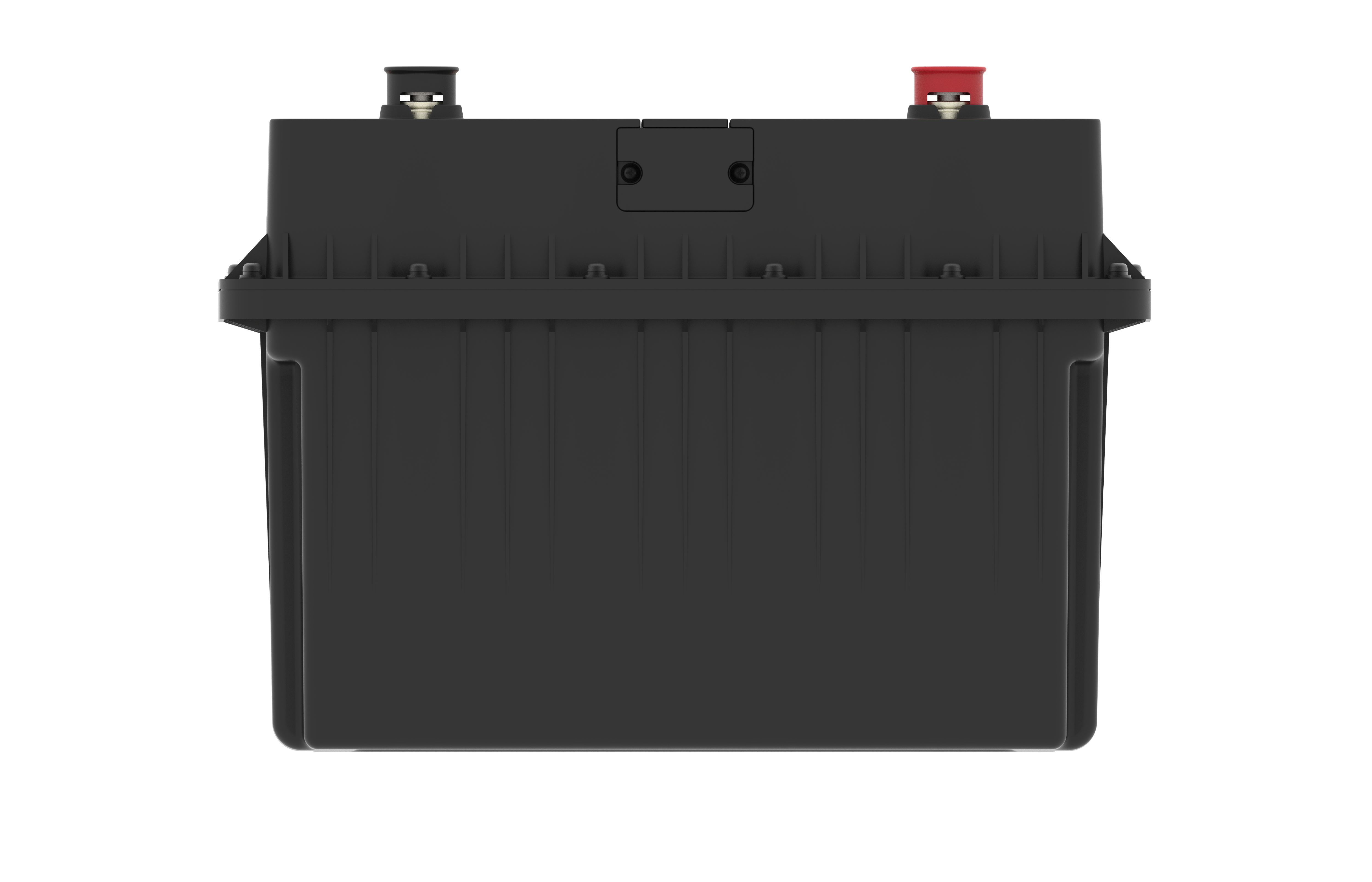

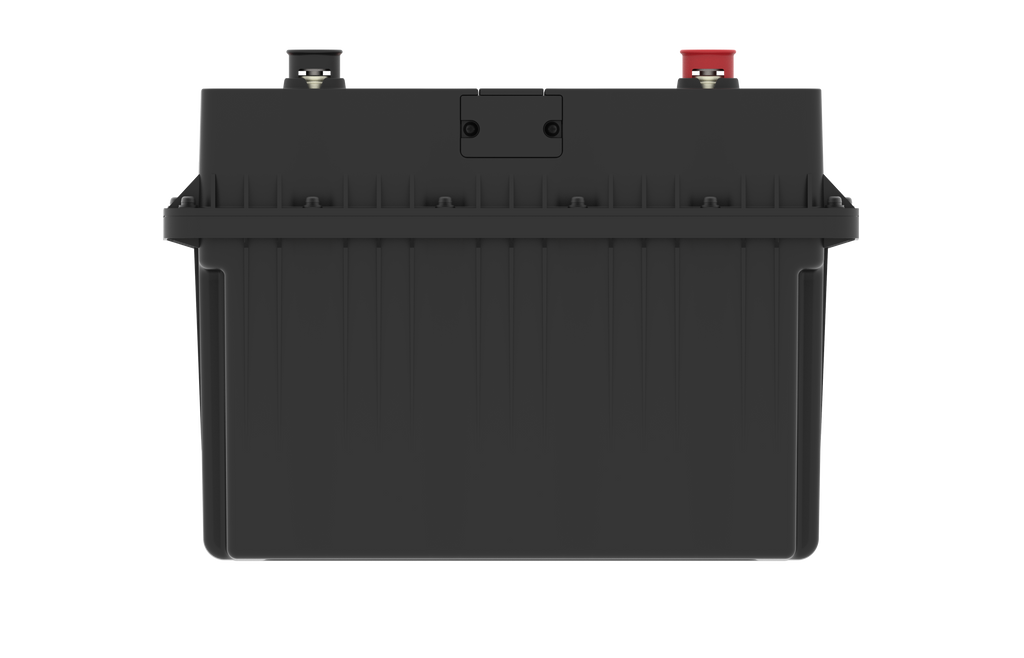

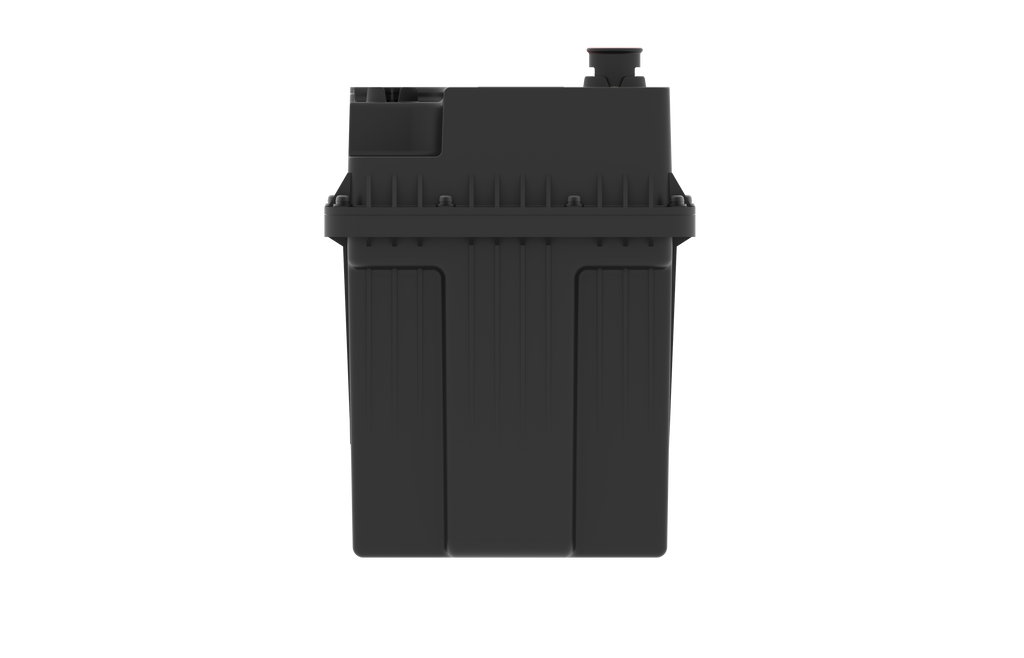

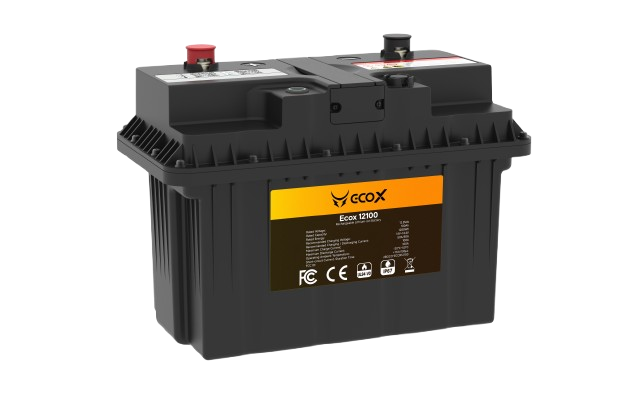

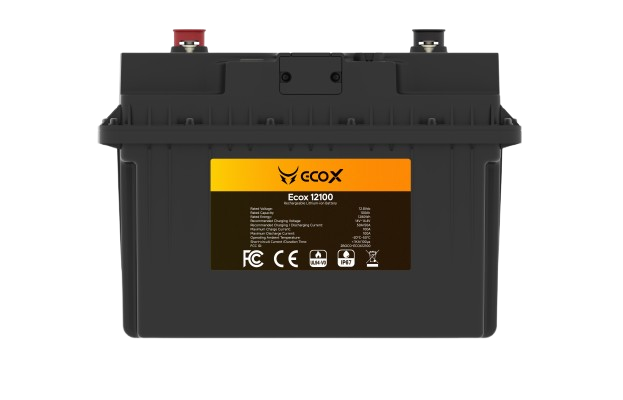

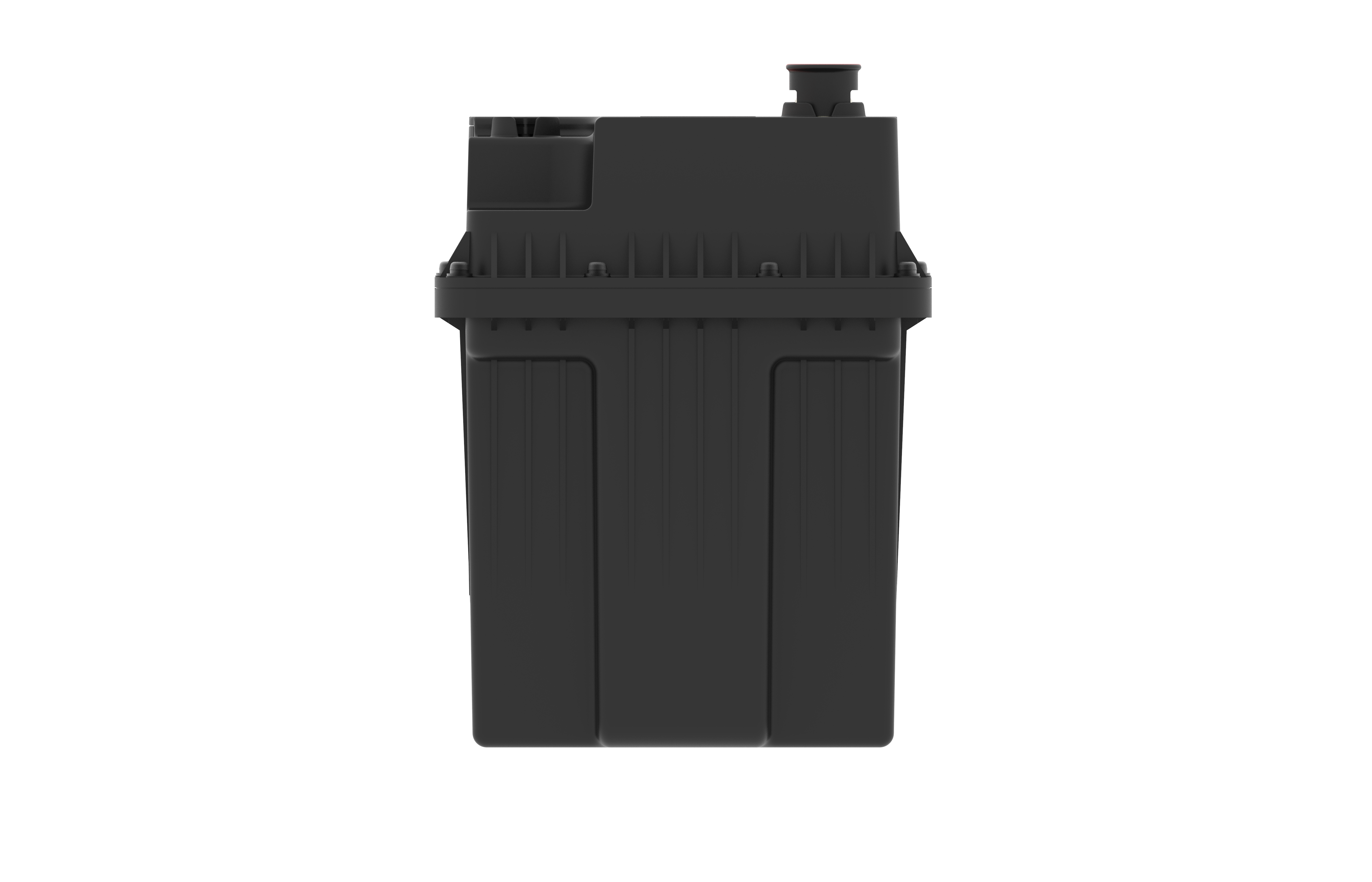

Ecox 12100
An innovative battery solution, outperforming lead-acid batteries of the same capacity.
It's lightweight for easy portability and installation, boasts higher charge-discharge
efficiency and enables real-time monitoring via mobile devices for smart management.
It has high cycle life, supports battery strings composed of 16 batteries connected in series or parallel for capacity expansion. This battery is ideal for deep-cycle off-grid use in RVs, boats, trucks, and cabins and can replace deep-cycle lead-acid batteries.
| Electrical | |
| Nominal Voltage | 12.8VDC |
| Nominal Capacity | 100Ah |
| Internal Resistance | <10mΩ |
| Round-Trip Efficiency | 99% |
|
Self-discharge Rate |
≤3% per month |
| Scalability | 4S4P |
| Cycle Life | >4500 |
| Maximum Continuous Discharge Current | 100A |
| Recommended Continuous Charge Current | ≤50A |
| Recommended Charge Voltage | 14V~14.4V |
| Environmental | |
| Recommend Storage Temperature | 50°F~95°F（10°C~35°C） |
| Discharge Temperature | -40°F~140°F（-40°C~60°C） |
| Autitude |
<4000m |
| Relative Humidity | 5%~95%(no condensation) |
|
Mechanical |
|
| Dimensions | 12.8×6.83×9.37in(325×173.5×238mm) |
| Weight |
approx 26.46lbs(12kg) |
| Terminal Type | M8×14 |
| Terminal Torque | 9±1Nm |
| Housing Material |
PC |
| Ingress Protection | IP67 |
| Battery Type | LFP |
| Certifications | |
| UN38.3,TELEC,IEC2619,FCC,CE | |
