Description
Product description:

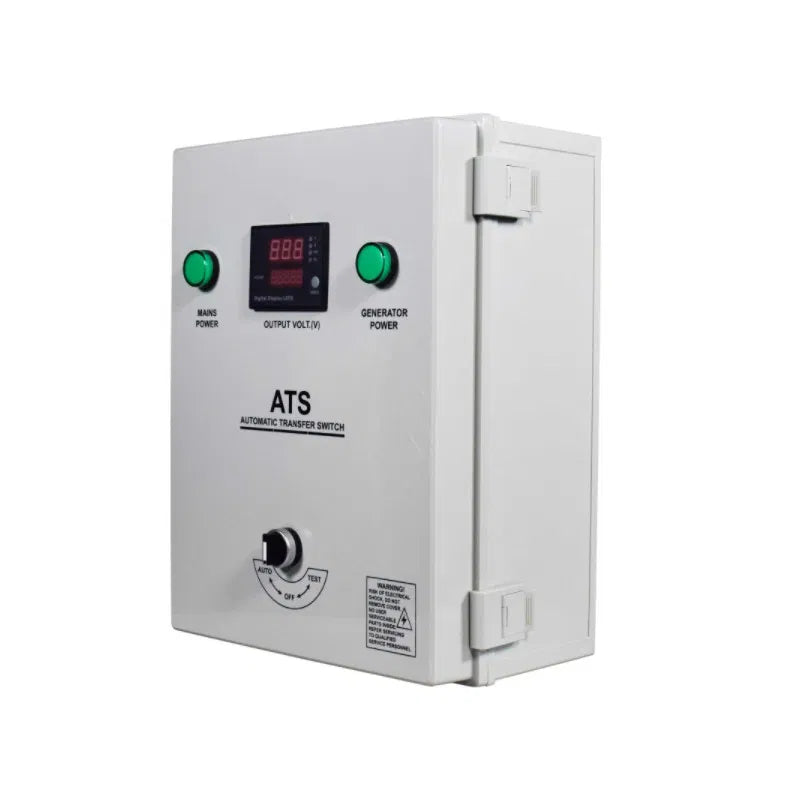

- Single-phase automatic switch.
- ATS (automatic transfer system) module for automatic mains failure automation, with automatic generator ITC Power.
- Made of rust-resistant sheet steel and weatherproof plastic housing.
- It is used to switch from the primary power supply (e.g. local mains) to the secondary power supply (from a generator).
- It is often used when there is a failure in the public power supply, starting the generator automatically. When the mains power is restored, the generator is stopped.
- Easy to use and install.
- Compact design.
- Quick connectors.
- Standard sockets.
- Easy connection for generator monitoring.
- Carrying handle.
- LCD display monitors voltage, current and frequency.
- Protected control module.

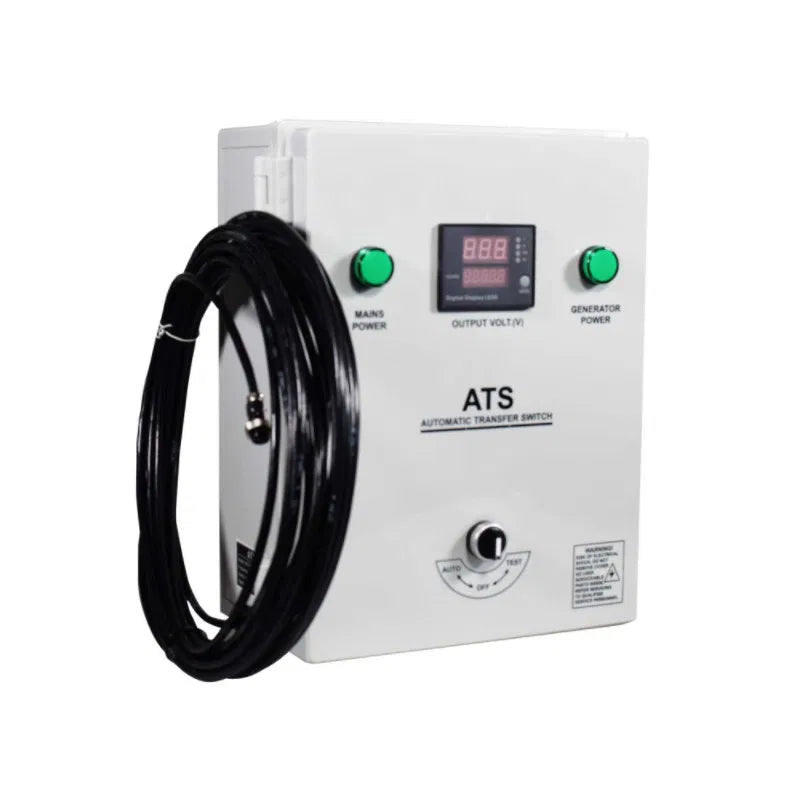

- Includes 15 metres of cable.
- Weighs 9.7 kg.
- Important:
- Do not handle when electricity is present.
- To be used only with Hyundai generators.
- Installation must be carried out by a certified installer.
- There must be a circuit breaker at the inlet and outlet.
Technical data:
- Single phase.
- Rated voltage 240V 50/60Hz.
- Voltage range (V): 160 to 240.
- Maximum Current (A): 50.
- Rated Frequency (Hz): 50.
- Maximum Power Connection: 10 kW.
- Connection to Generator: Wired.
- Generator Monitor Connection: 3-pin connector.
- Power Supply Input: Hardwired.
- Output Connector: Wired.
- Transfer Delay (sec.): 2 to 5 sec.
- Return Delay (sec.): 10 sec.
