Description

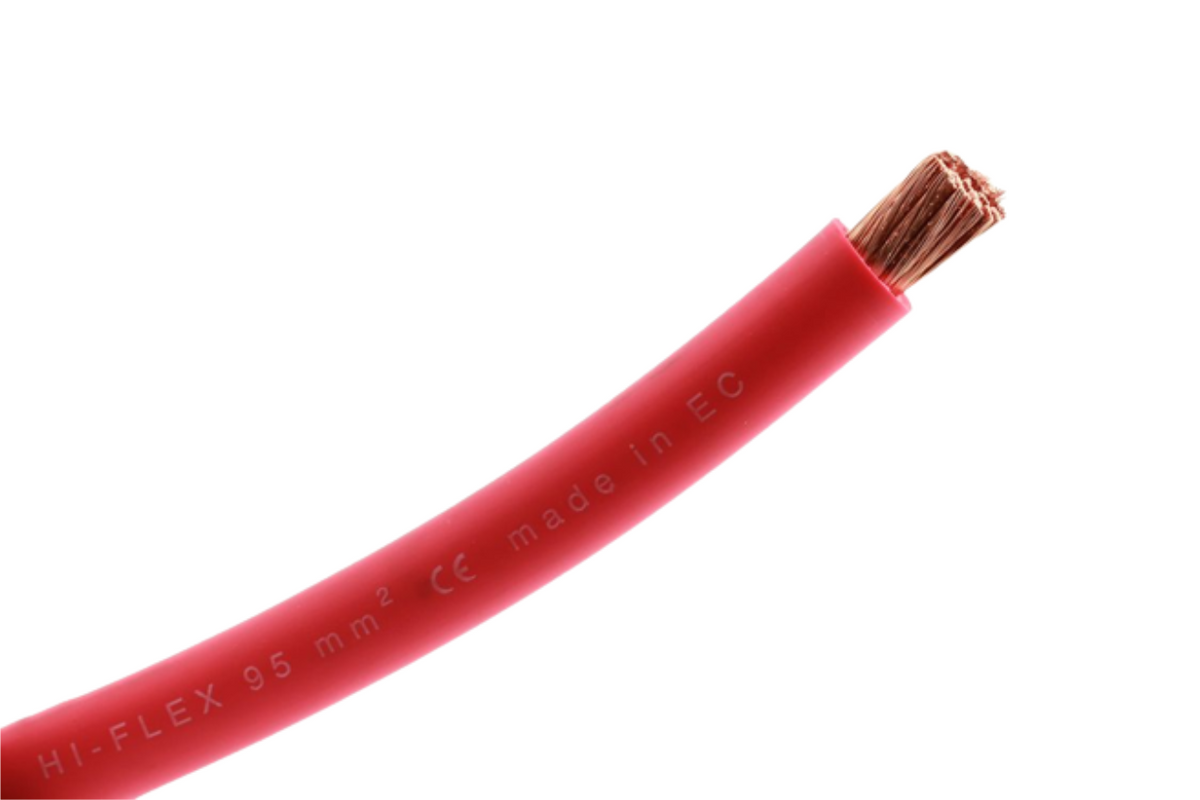

High quality Italian battery cable and is the most flexible cable out there making it a breeze to work with.
Product Features:
- Available per meter or 10 meter reels
- Bulk quantities on request
- Cable size - 95.0mmsq
- Cable Shape - Round
| Cable size | 95.0mm² |
| Nominal conductor construction (Wires x Ø mm) | 1224xØ 0.30mm |
| Max conductor resistance (Ohm/per km) | 0.22 Ohm/km |
| Outer cable diameter (mm) | 18.05 - 18.35mm |
| Minimum insulation thickness (mm) | 1.70mm |
| Insulation type | Soft PVC according IEC 60332-1 |
| Insulation hardness | 70± 5 Shore “A” |
| Max. working voltage | 600V |
| Temperature rating | +5ºC/+70ºC |
| According requirements | IEC332-1/CEI EN 50265 |
